Polar Instruments
Controlled Impedance Parts List.


Accessories/Consumables


Thumbnail

 POLAR Part number Description Details

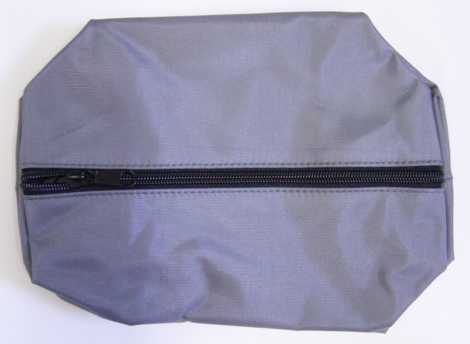

ACC105 General purpose Polar bag

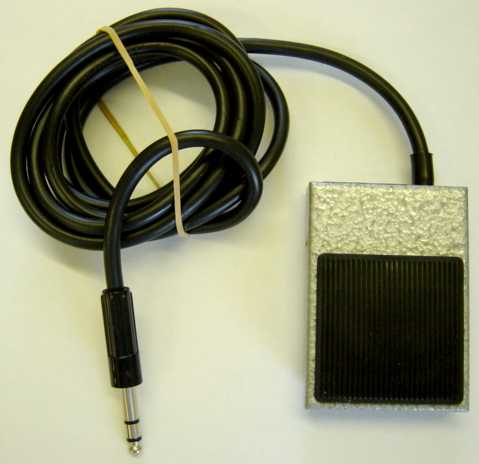

ACC124 Foot switch CITS
ACC127 Adaptor RS232
9-25 pin

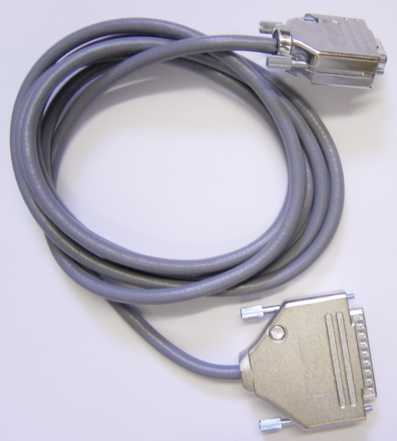

ACC142 RS232 cable

Length: 2m
ACC153 Coupon Holder

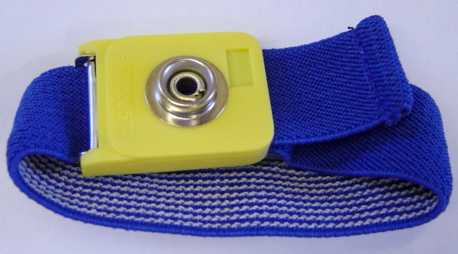

ACC175 Antistatic wrist strap

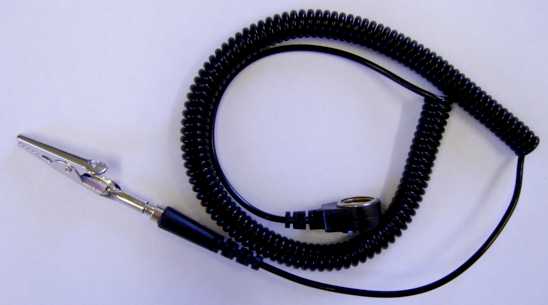

ACC185 Ground cord

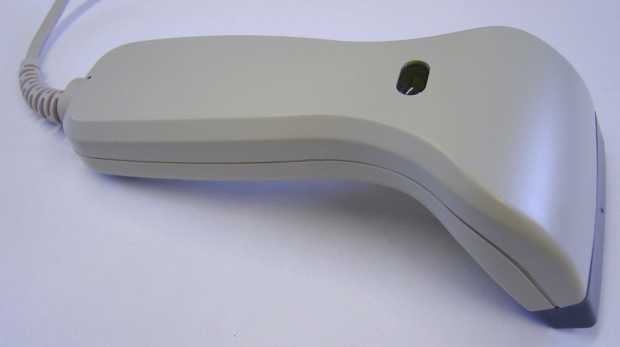

ACC186 Barcode reader

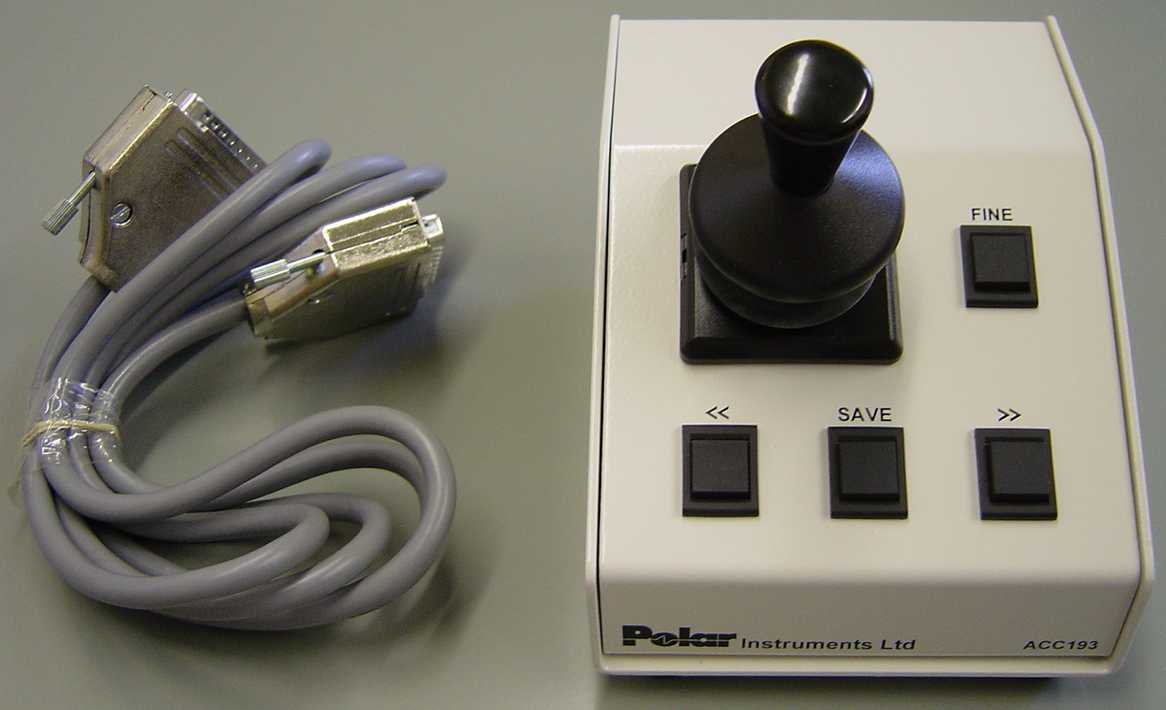

ACC193 & ACC191 Joystick and cable

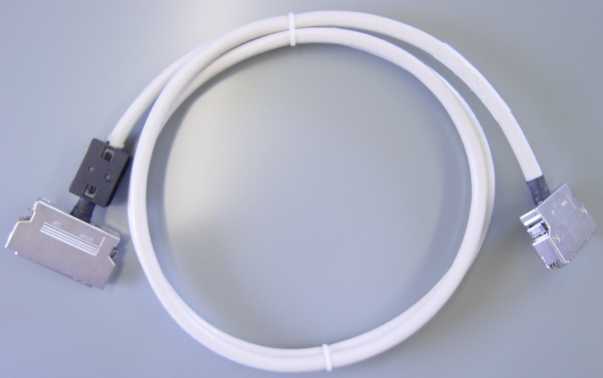

ACC202 Compumotor cable Used on:
RITS500
RITS510a

Length: 1.5m

For RITS520a use ACC324

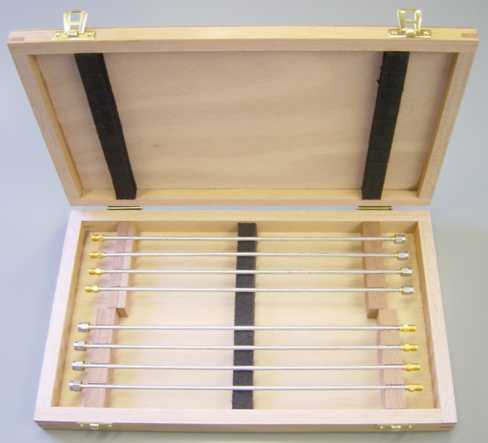

ACC229 CITS verification kit

Set of eight semi-rigid cables.


ACC232 28 Ohm airline with adaptor ACC244.

30cm, 7mm connectors


ACC233 50 Ohm airline with adaptor ACC244.

30cm, 7mm connectors

 Used on all.
ACC234 75 Ohm airline with adaptor ACC244.

30cm, 7mm connectors

 Used on all.

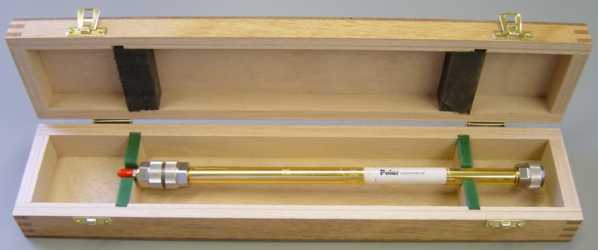

ACC235 100 Ohm airline with adaptor ACC244.

30cm, 7mm connectors

 Used on all.
ACC244 Airline Adaptor

7mm to SMA

 Used on all.
ACC245 RITS Probe barrel

Right side green

 Used on:
RITS500s
RITS510a

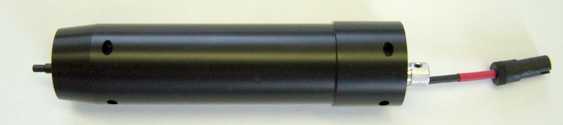

ACC246 RITS Probe barrel

Left side Red

 Used on:
RITS500s
RITS510a

RITS IP impedance test probes

When ordering CITS probes please specify the footprint and the model of the CITS or RITS. If the desired foot print is not listed please contact your local Polar office.

Minimize your IP probe costs to by ensuring your coupons are designed with one of the following "preferred" probe part numbers:

IP50/0.1", IP50/0.14", ACC270, ACC272, ACC274, ACC275

All other IP probes are made to special order and priced accordingly.

(For a full selection of probe foot prints please refer to Application Note AP146.)
IP-50V  IP50-V IP50V Variable pitch CITS test probe, ideal for lab use.  For production purposes a fixed pitch probe from the above AP146 is recommended
ACC247 Sensor setup gauge for RITS probe

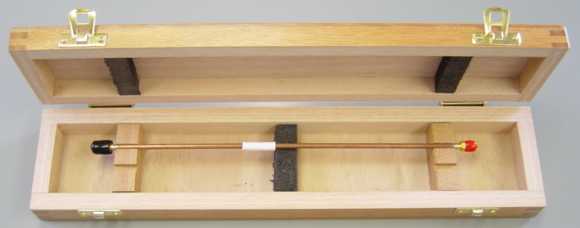

ACC253 CITS Verification

25 Ohm Semi-Rigid


ACC254 CITS Verification

50 Ohm Semi-Rigid


ACC255 CITS Verification

75 Ohm Semi-Rigid


ACC256 CITS Verification

100 Ohm Semi-Rigid


ACC257 Airline-PCB assembly 28 Ohms
ACC258 Airline-PCB assembly 50 Ohms

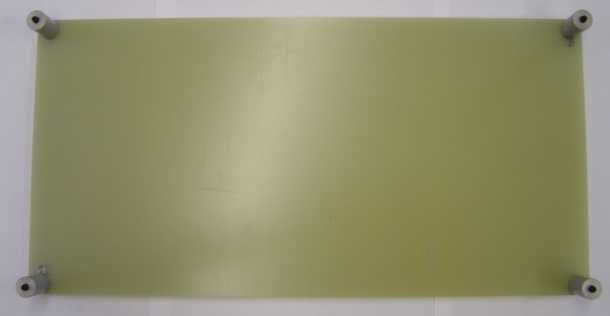

ACC260 RITS500s Test Fixture
Fixed assembly		 Used on:
RITS500
RITS510a

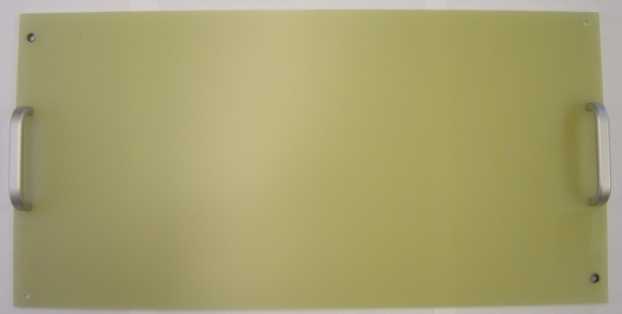

ACC261 RITS500s Test Fixture
Removeable assembly		 Used on:
RITS500
RITS510a

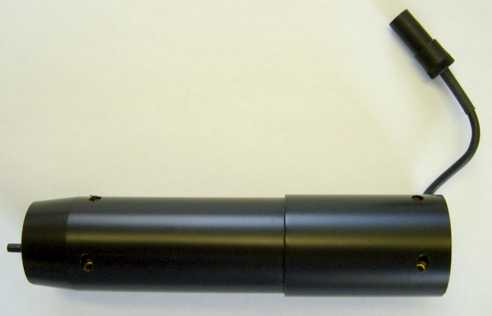

ACC299 RITS520 probe barrel Used on:
RITS520a

CITS IP impedance test probes

When ordering CITS probes please specify the footprint and the model of the CITS or RITS. If the desired foot print is not listed please contact your local Polar office.

Minimize your IP probe costs to by ensuring your coupons are designed with one of the following "preferred" probe part numbers:

IP50/0.1", IP50/0.14", ACC270, ACC272, ACC274, ACC275

All other IP probes are made to special order and priced accordingly.

(For a full selection of probe foot prints please refer to Application Note AP146.)

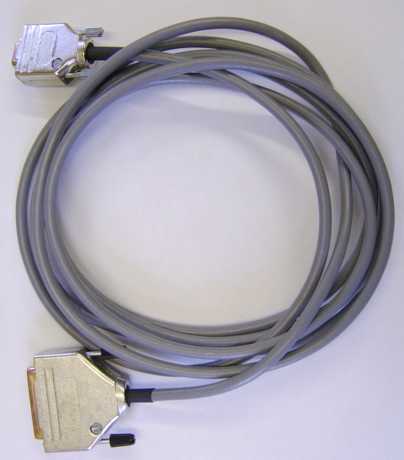

ACC301 RS232 Cable Used on:
RITS 520a

Length: 3.5m
ACC313 Torque wrench

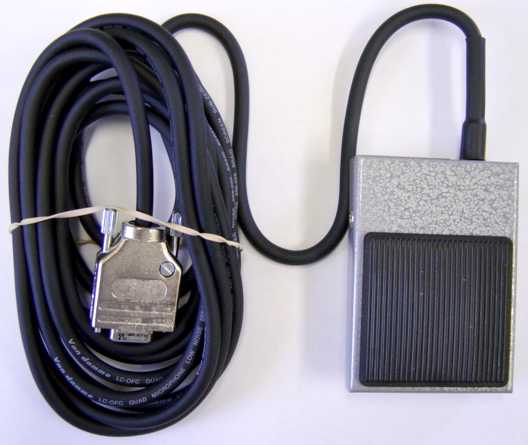

ACC323 Foot switch Used on CITS500sxa only

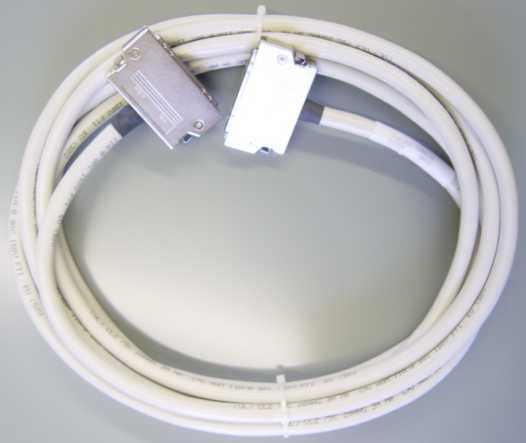

ACC324 Compumotor Cable Used on:
RITS 520a

Length: 3m

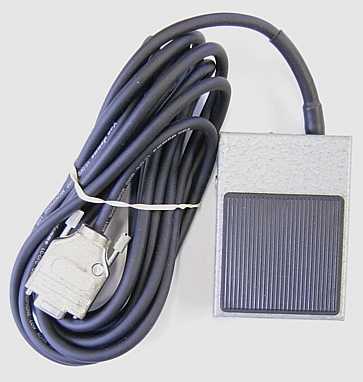

ACC327 Foot switch Used on:
RITS 520a

Length: 3.5m

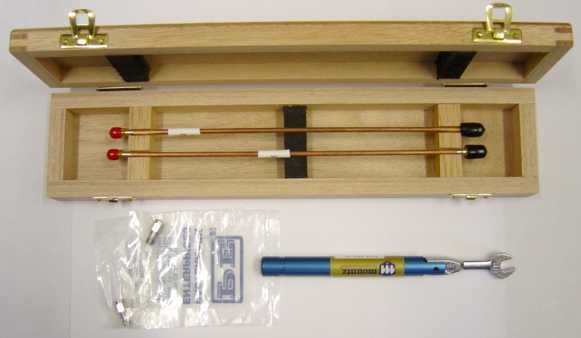

ACC339 Accessory Kit CITS100

Used on all.

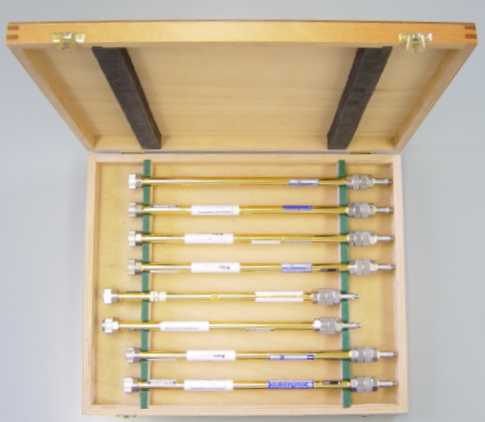

ACC341 CITS Calibration

Set of 8 airlines in wooden box for CITS calibration.

2* 25 Ohms
2* 50 Ohms
2* 75 Ohms
2* 100 Ohms

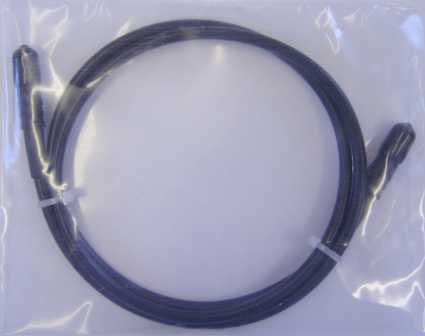

WMA326 RF Cable


Service
Thumbnail POLAR Part number Description Details

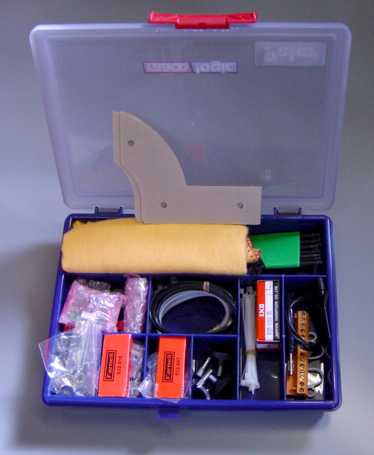

ACC223 Spares kit Used on:
RITS500
RITS510a
ACC225 Magnetic pickup tool

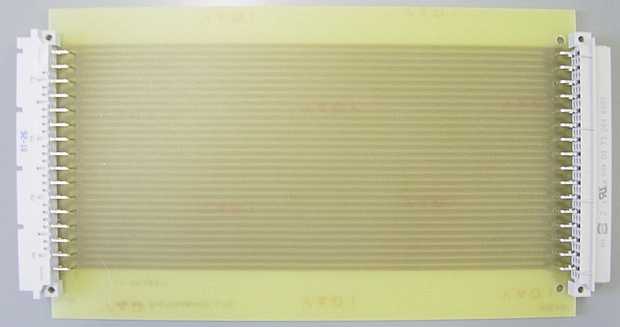

ACC262 Card extender

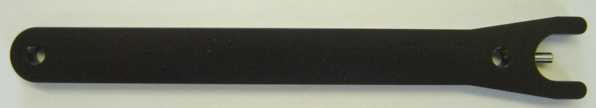

ACC263 Leadscrew lock Used on:
RITS500
RITS510a

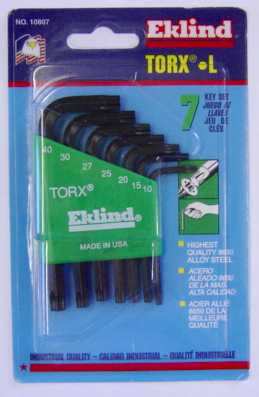

ACC284 Torx key set

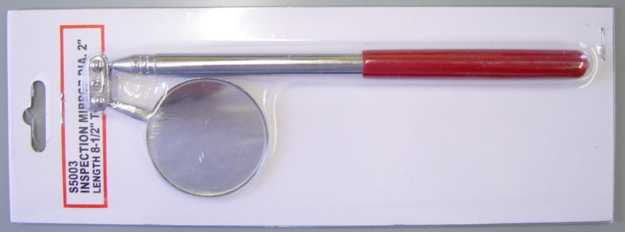

ACC336 Telescopic mirror

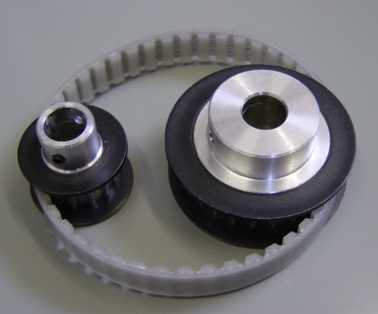

MMP214 Drive gears and pulley

X or Y-axis.

 Used on:
RITS500
RITS510a

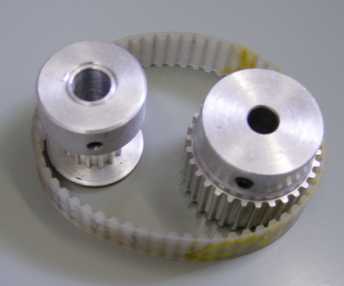

MMP215 Drive gears and pulley

Z-axis.

 Used on:
RITS500
RITS510a

No picture

 MPA192 Calibration Compound
No picture MPA197 Grease for Leadscews Used on:
RITS500
RITS510a
RITS520a

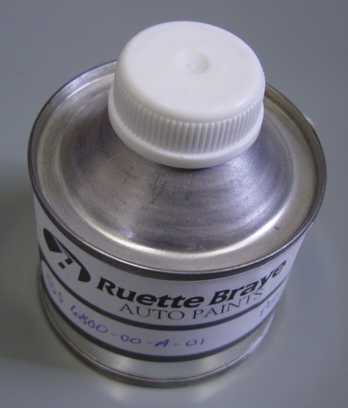

MPA203 Touch up Paint
Ash-Grey		 Used on:
RITS500
RITS510a

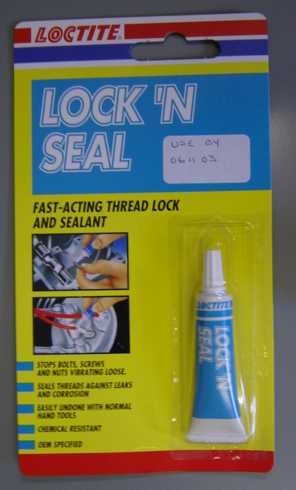

MPA204 Thread Lock Used on:
RITS500
RITS510a
RITS520a

No picture

 MPA220 Light Oil for Slides Used on:
RITS500
RITS510a

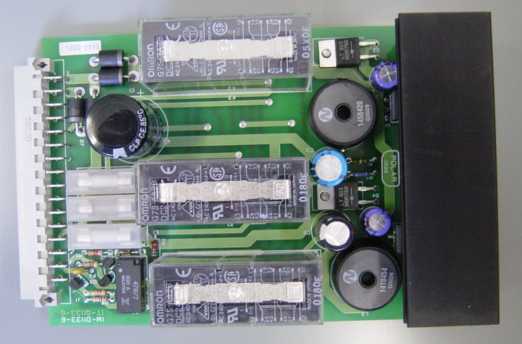

MSA133 PSU / Safety Used on:
RITS500
RITS510a
RITS520a
MSA197 X or Y Nut Assembly Used on:
RITS500
RITS510a
MSA198 Z Nut Assembly Used on:
RITS500
RITS510a
  ACC211 Camera monitor
  ACC322 LCD computer screen 17"
  ACC319 Replacement PC with ISA slot (No monitor).
