PCB stack up design, controlled impedance calculators, PCB field solvers and test systems for controlled impedance and PCB insertion loss

Testing, modeling and documentation for impedance control and insertion loss Which product is right for me?
Insertion loss modeling and PCB signal integrity – 3GHz and above Brochure
Polar's product suite for insertion loss modeling, PCB stackup design and PCB signal integrity is designed for OEMs and fabricators who are concerned with PCBs running at speeds where insertion losses need to be managed. Typically, these run in the 3 to 50GHz arena, though the Si9000e is also capable of modeling right down to the KHz range in support of the broadest band of transmission line signalling.
Impedance controlled PCBs – up to 3GHz Brochure
Polar's interconnected tools for impedance controlled PCBs are designed for OEMs and fabricators who are concerned with PCBs running in the popular 100MHz to 3GHz region, especially those with applications where signal reflection rather than insertion loss is the main criteria from a signal integrity perspective.
Polar Signal Integrity product overview Can't view the video? Click here
PCB Signal Integrity and insertion loss testing, modeling and documentation Brochure Top

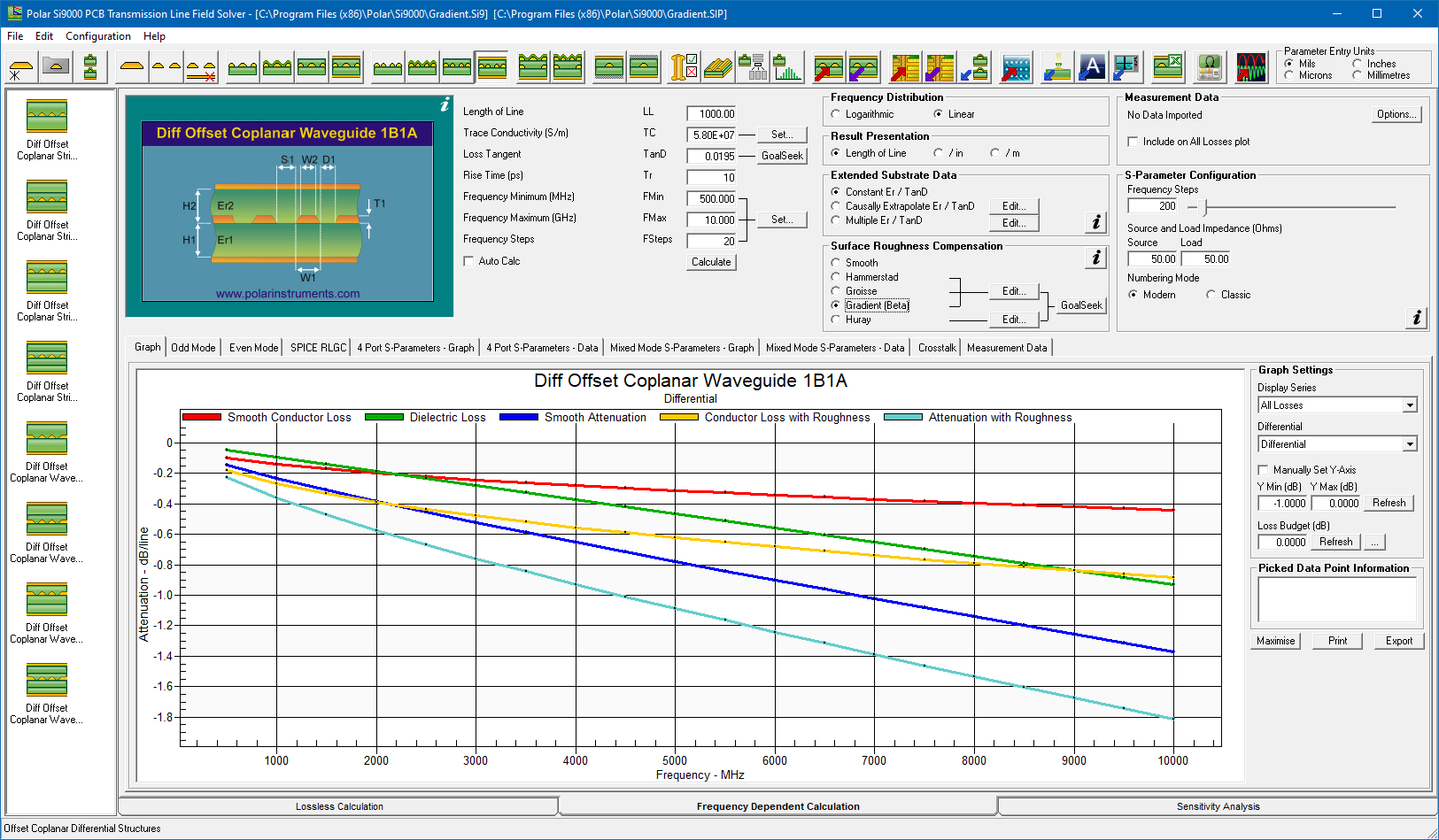

	Si9000e – PCB insertion loss field solver
	Speedstack Si – Insertion loss & impedance PCB stackup design including Si9000e
	Atlas Si for Touchstone – PCB Insertion loss processing with Delta-L 4.0 Converts short and long line .s4p files with Delta-L 4.0 for analysis with Si9000e. For Si engineers & PCB technologists.
	CGen Si – Insertion loss test coupon generator – SPP, SET2DIL, SET2SEIL
	Atlas Si for VNA – Insertion loss test system – Delta-L 4.0 differential insertion loss test to 43.5GHz Supports Anritsu ShockLine™ MS46524B and VectorStar™ MS4647B
	Atlas Si for TDR* – Insertion loss test system – Delta-L, Delta-L+, SPP, SET2DIL, SET2SEIL *For existing Tektronix DSA8300 / 80E04 customers
Modeling, documentation and test for lossless impedance controlled PCBs Brochure Top
	Si8000m – PCB impedance field solver
	Speedstack PCB – Speedstack / Si8000m for controlled impedance PCB stackup

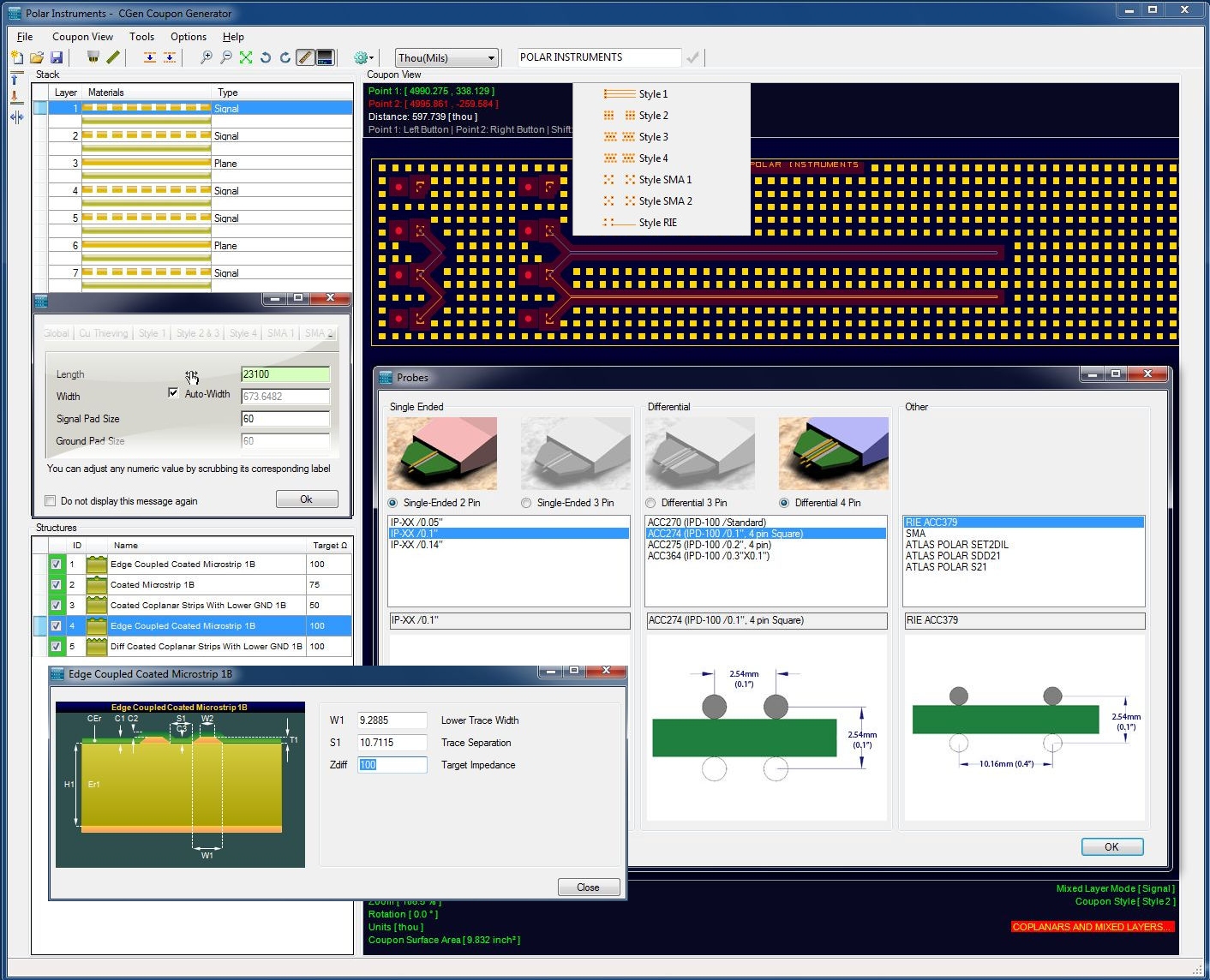

	CGen PCB – Controlled impedance test coupon generator

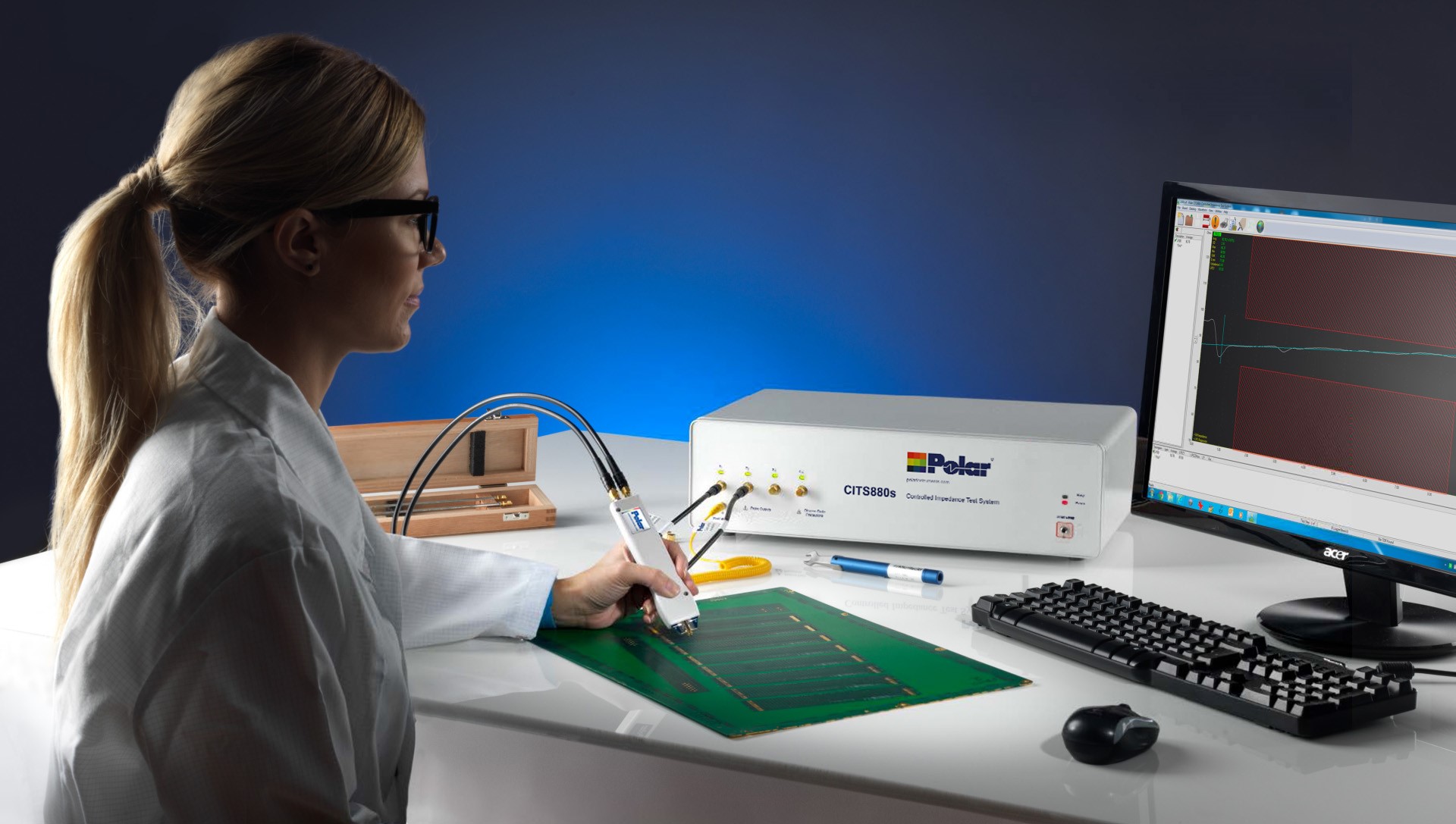

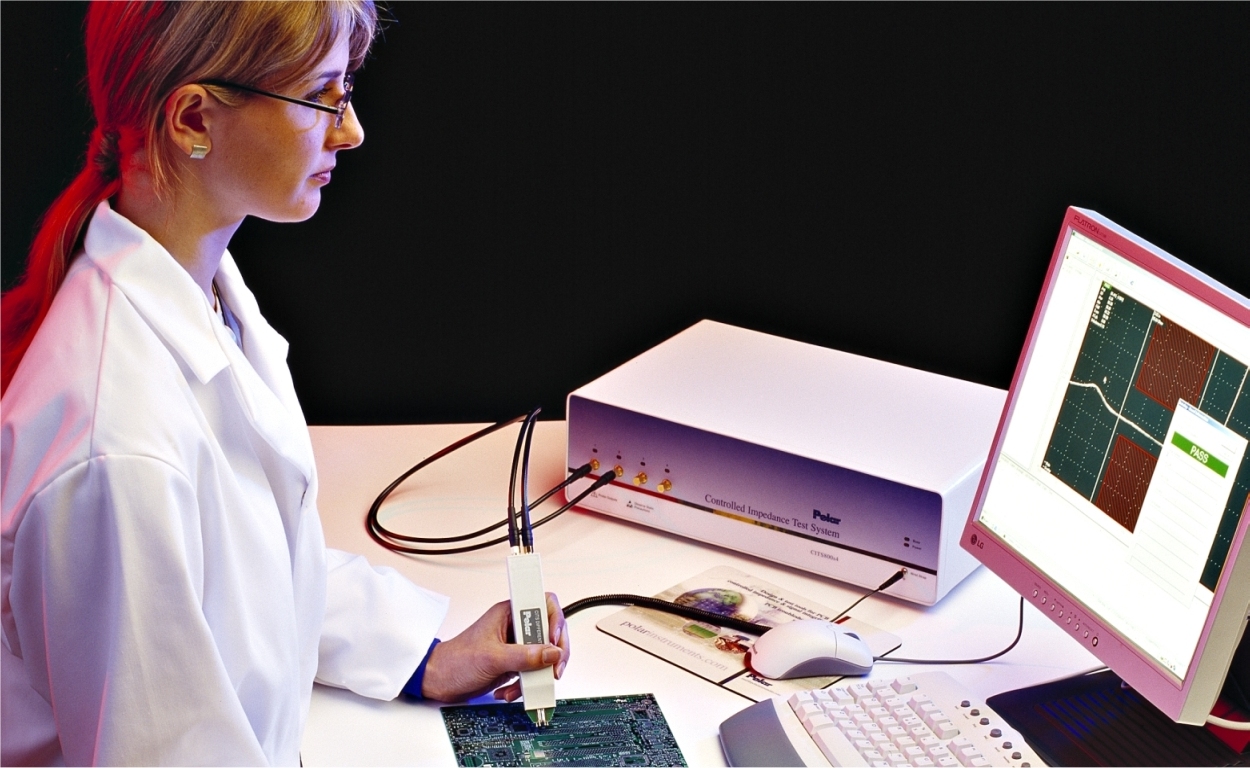

	CITS880s – Controlled impedance test for lossless transmission lines

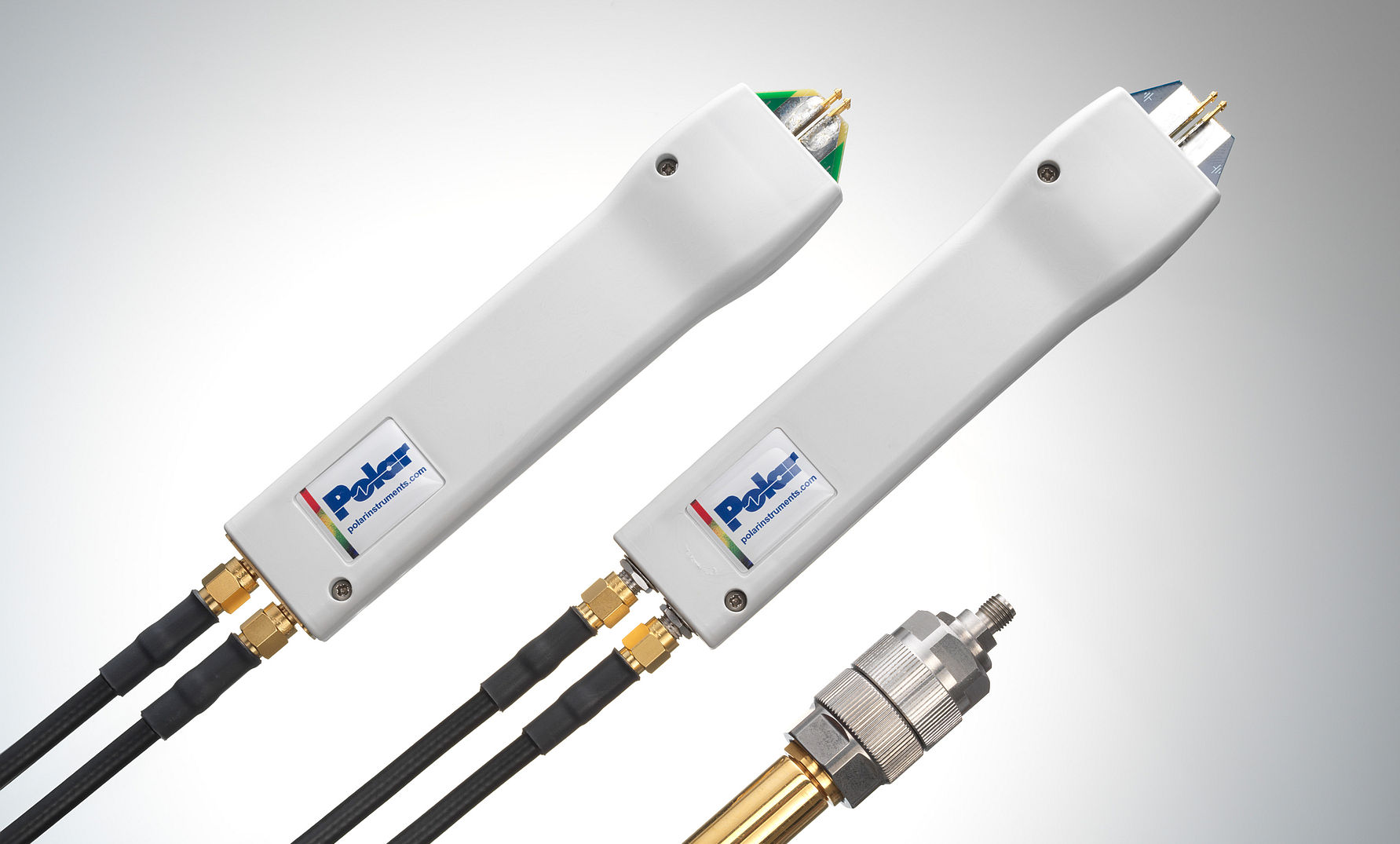

	Polar test probes – IPDS fixed and variable pitch probes designed for the CITS880s
	Atlas PCB – Polar Impedance test software for Tektronix DSA8300
	EPD100 – PCB track equipotential viewer (free educational utility)
PCB Stackup tools Top

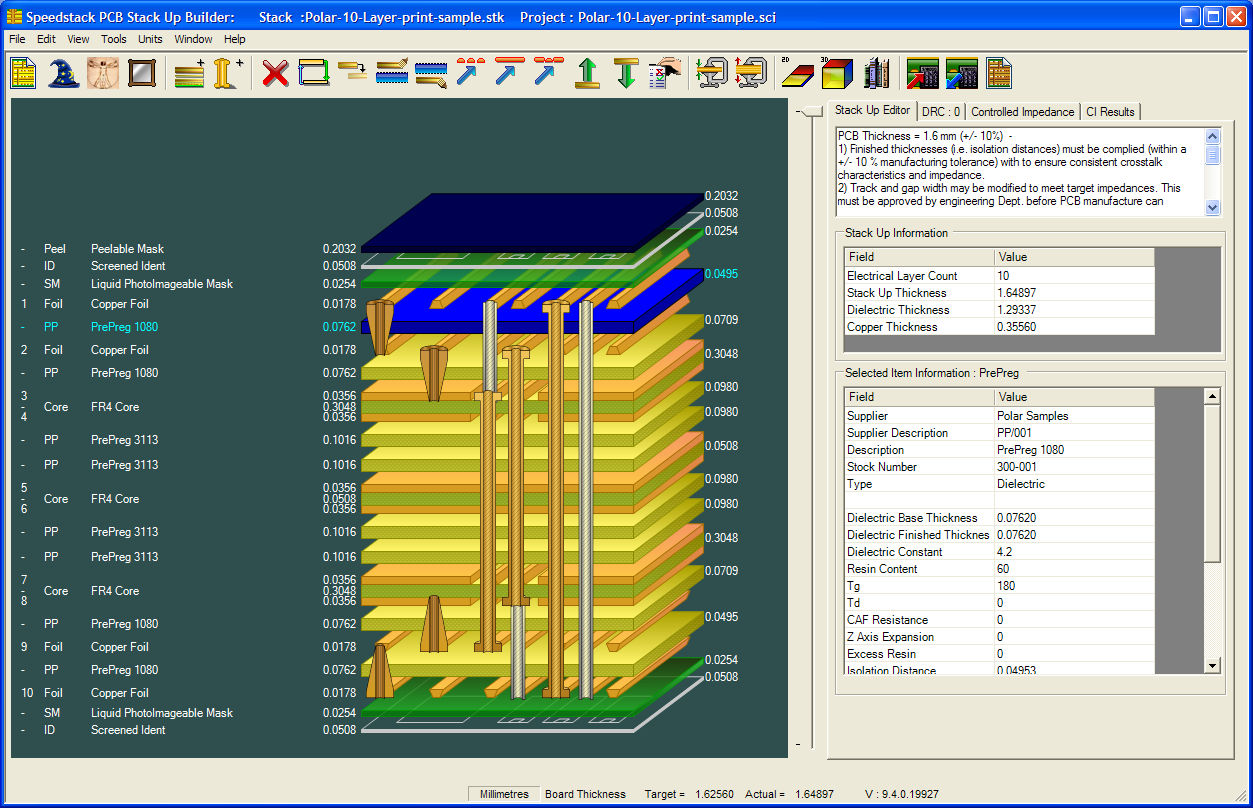

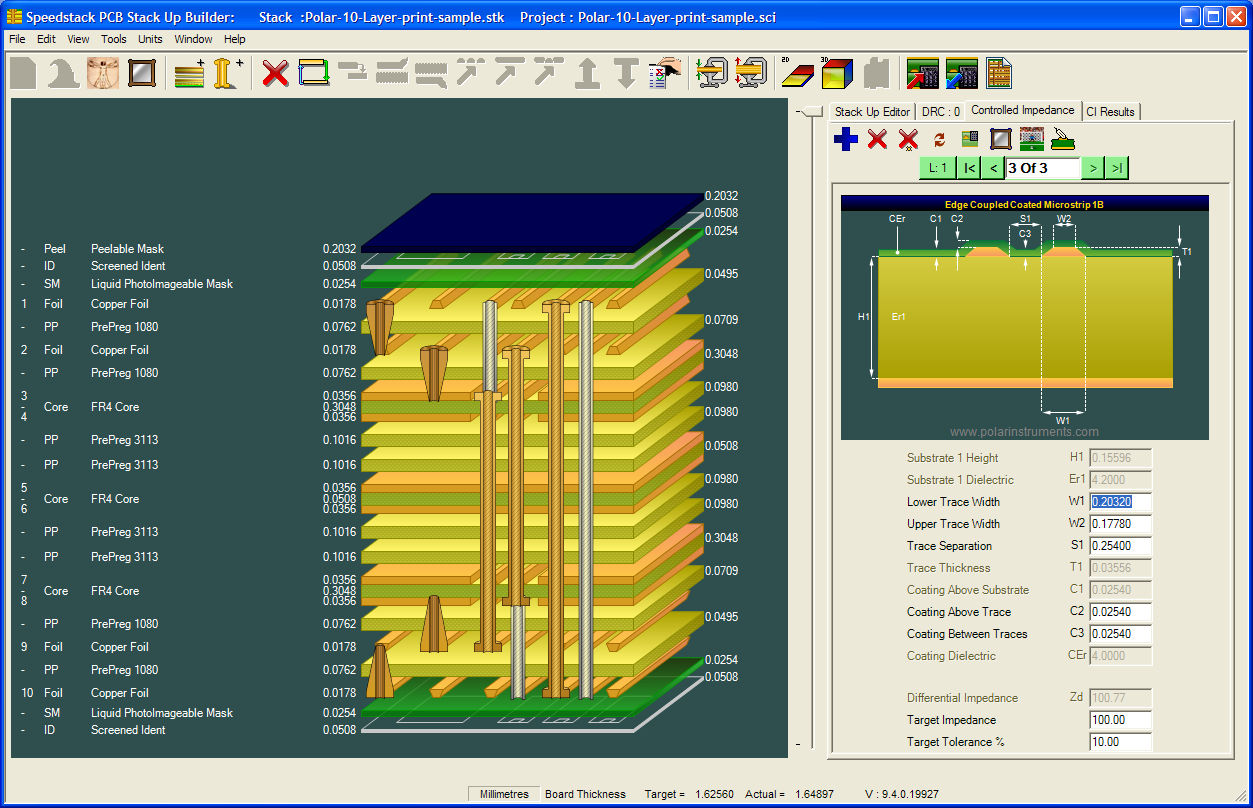

	Speedstack – PCB layer stackup design and high quality documentation
	Speedstack HDI – HDI PCB stackup design and documentation

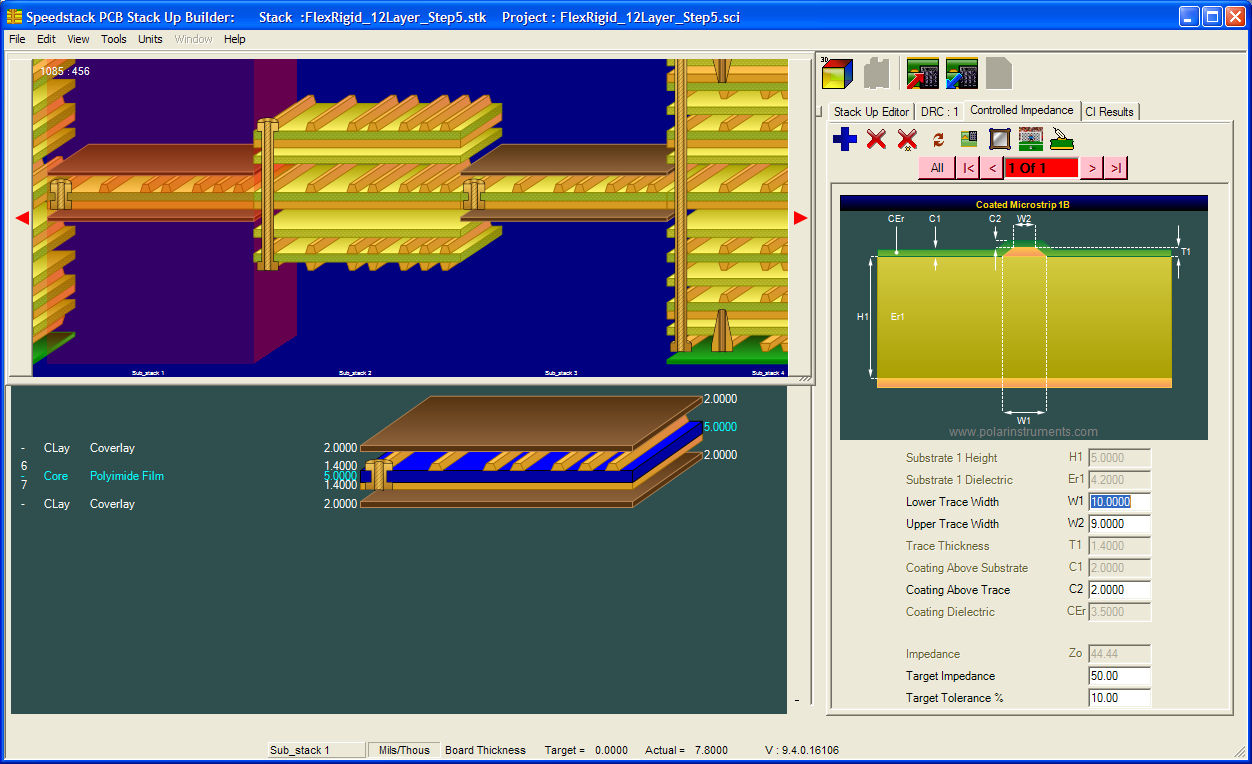

	Speedstack Flex – Flex-rigid PCB stackup design and documentation
Si Options

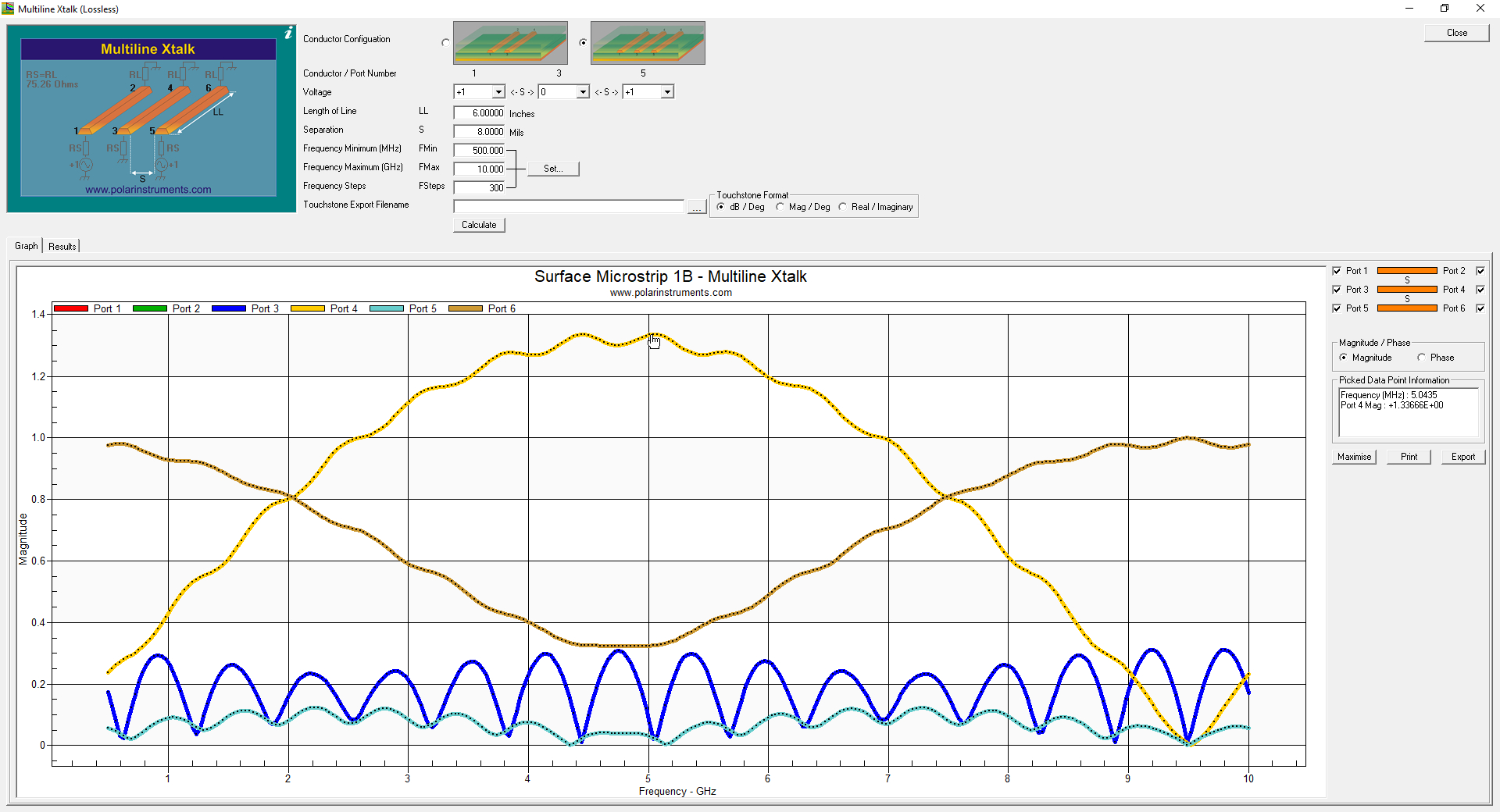

	Si Crosstalk – Multiline and differential pair (lossless) crosstalk option for Si8000m/Si9000e

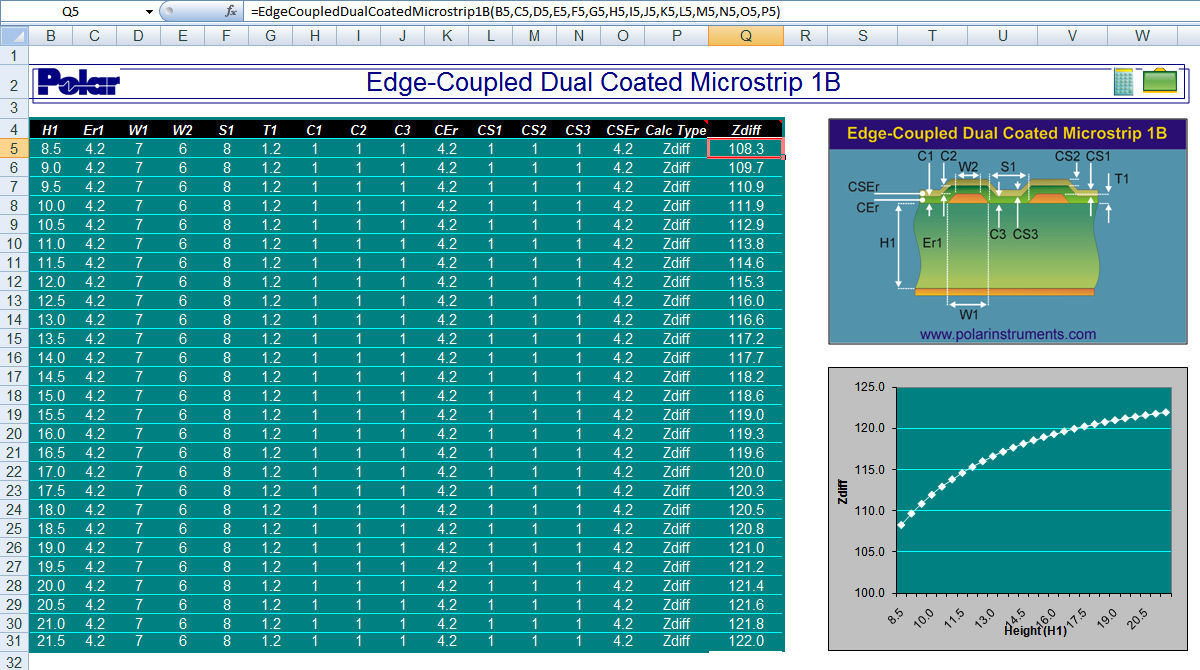

	Si Excel Interface – Microsoft Excel^® interface option for lossless calculations in Si8000m/Si9000e

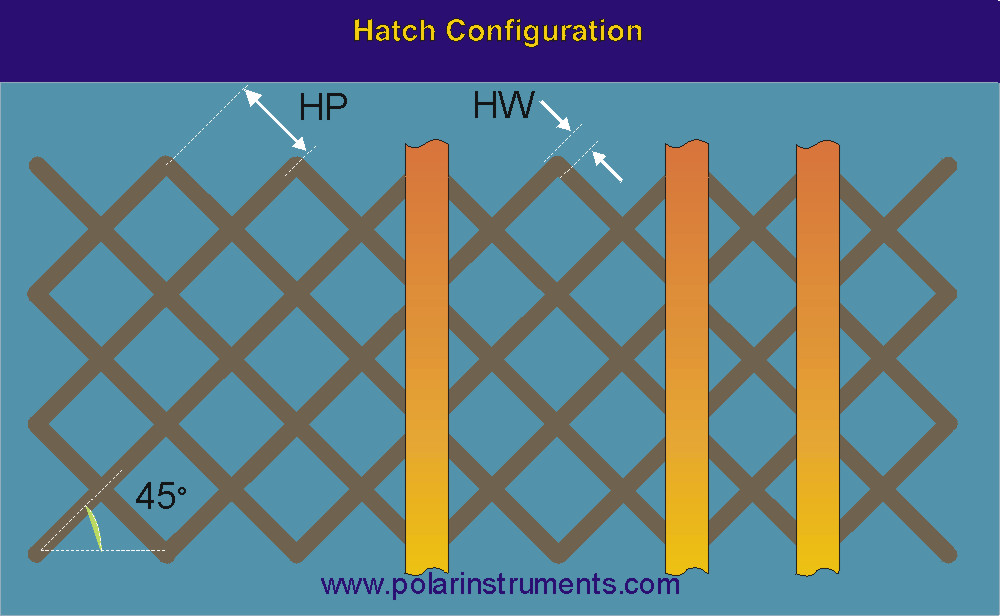

	XFE – Crosshatch Flex Enhancement option for Si8000m and Si9000e field solvers
	Si Projects – Enables saving sets of user-defined controlled impedance structures
	Si TRC – Track Resistance Calculator calculates DC series resistance of PCB tracks
	XML Interface Module – OEM access to the Si8000m / Si9000e field solvers
PCB Troubleshooting and paperless repair Top
	GRS500 – Flying probe repair test system
	GRS500 CADView – PCB paperless repair multi-format CAD viewer
	Toneohm 950 – Locate and repair short circuits with unique ground plane short capability
