SB9000 Boundary element field Solver

SB9000 package comprises Si9000e and SB200

SB9000 brochure:  screen / print

PolarCare  support:  screen / print



To request an SB9000 evaluation package please click here. To see how you could use the SB9000, take a look at this new 5 minute web based introduction

Materials Libraries

Materials partner program

Generic libraries
Libraries of material specification that will allow you to design stacks without selecting specific material types and manufacturers

Metric: designers_mm.mlb

Imperial: designers_mil.mlb

NEW: SB9000 PCB transmission line design and layer stackup package

 The SB9000 is a packaged combination of the Si9000 field solving pcb transmission line design system SB200a professional layer stackup design software. If you need both powerful and accurate field solvers to predict your pcb performance and layer stackup / buildup documentation the SB8000 offers a considerable saving over purchasing separate licences

The SB9000 PCB transmission line design and layerstackup package is ideal for you if:

  • You need to calculate impedance requirements and model loss on multilayer boards with multiple controlled impedance structures per stack:

  • You need to extract engineering information to drive simulation software, prior to committing a design into production.

  • You need to experiment with differing stack up approaches - for example substitute material in the case of a shortage, and rapidly check (for example) overall height, line width and transmission line impedance values.  By employing the link between the Si9000e transmission line design system and the SB200 stackup / buildup software you can recalculate all the impedance values in a single pass in a fraction of the time taken traditionally.

  • Should there be a need for any line width alteration the new build information can be rapidly communicated electronically, your colleagues being able to read the stack and impedance information with the new SB200 viewer.  (Free 12 month licences for the SB200 viewer are available from Polar)



Clear stackup documentation
Click to enlarge

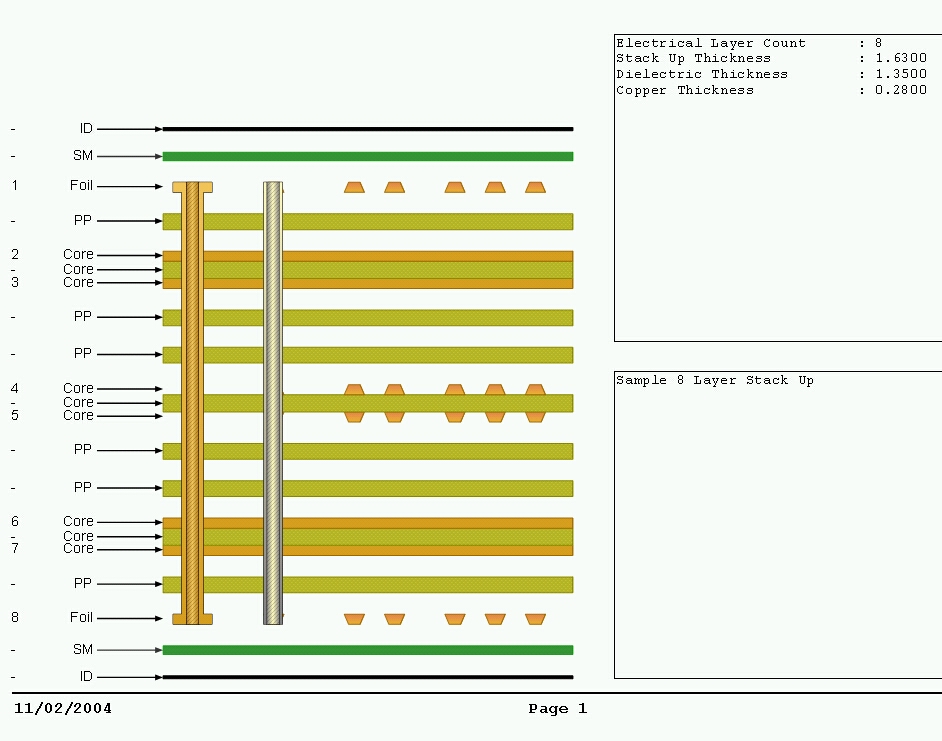

 Clear concise documentation

Share and document stackup information in a clear and consistent format. Material usage and graphical stack up views can be printed or shared electronically in a format that is easily read by both interconnect designer and fabricator.

Design rule checks
Click to enlarge

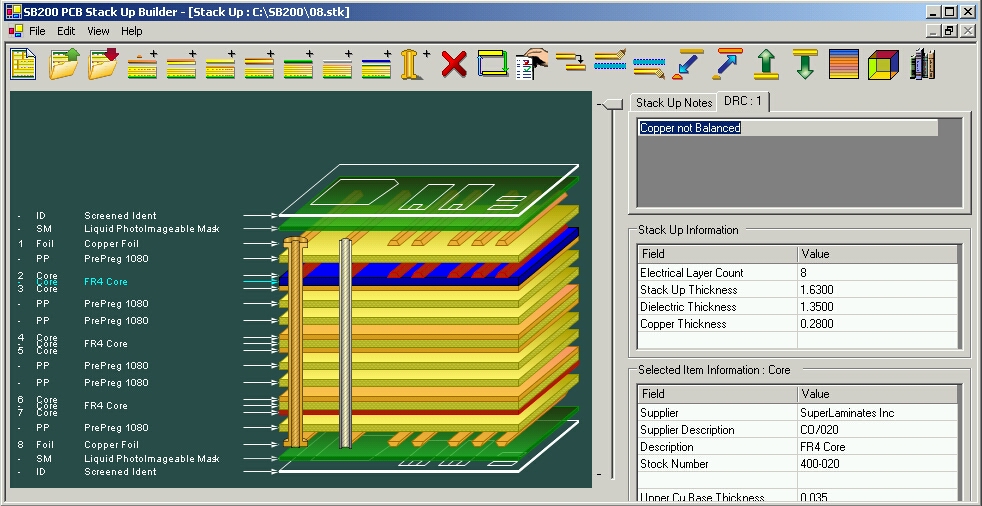

 Design rules check:

Real time design rule check highlights, material mismatch, copper imbalance, RCC foils on inner layers and other design parameters.


Share material information
Click to enlarge

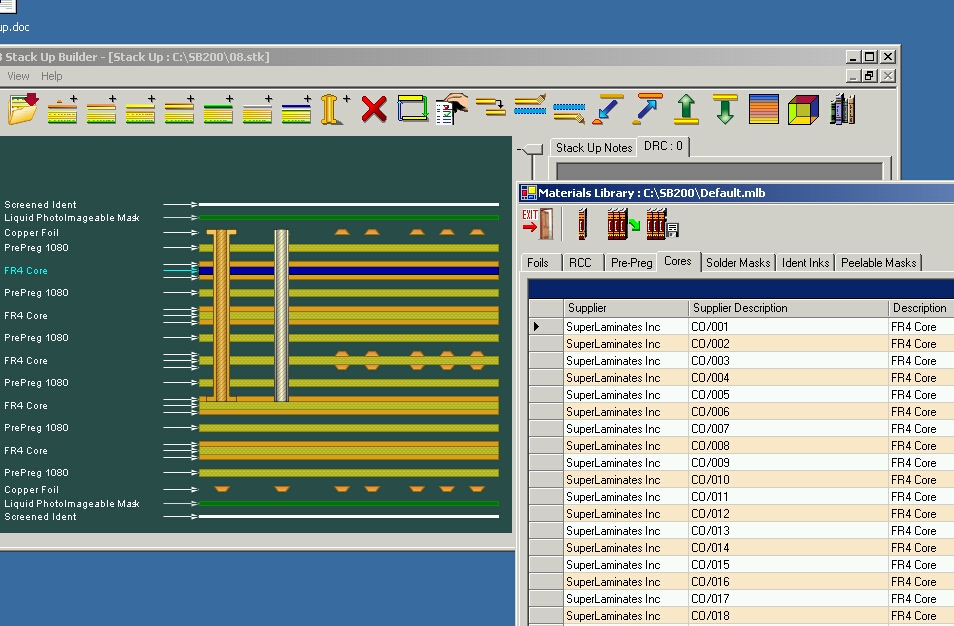

 Your materials:

PCB fabricators can build a library of commonly used materials and materials that are normally available from stock along with cost or performance information. Choosing the professional edition of the SB200 allows you to direct import your materials library in text delimited form. This information may be shared with interconnect designers. This means that designers can at a glance choose materials on a basis of cost / lead time / or performance.

System requirements

The SB9000 PCB transmission line design and layer stackup package is developed with the latest tools and resources, and requires Microsoft .net framework compatibility.  Polar recommends that the SB200 is installed under Windows 2000 or Windows XP.  SB200 will also run under Windows 98 and Windows NT 4.0 however please first read the notes at the end of this section.



Computer

IBM PC compatible

Processor

1GHz Pentium minimum for SB200a 3GHz+ recommended or Athlon equivalent for use with SB200b and Si8000m

Operating system

Windows 2000, Windows XP - (preferred)
Requires Microsoft .net framework

System memory

512MB minimum recommended

Hard disk space required

150MB (min.)

Video standard

SVGA (1024 x 768 min.)

CDROM drive

Mouse

Microsoft compatible
