1.4 Selecting Materials

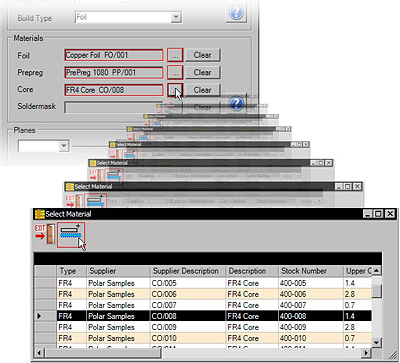

• In the Materials section of the wizard, select a Foil, a Prepreg and Core material to be used throughout the stackup (Soldermask is optional).

• The selection of materials depends upon the contents of the Materials Library which can be accessed by clicking on the Library Icon.
• The Materials Library is a database of different materials that can be used within the stackup.
