2.5 Goal Seeking The Line Width

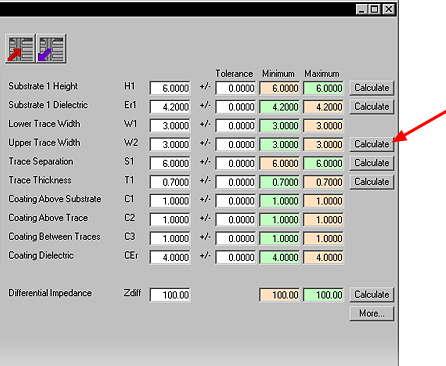

• In Si8000, hit the 'Calculate' button for the W2 parameter, as shown below.

• This will goal-seek and prune the line width values in order to achieve the target Impedance of 100.00
