Coated Microstrip

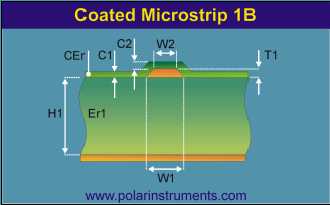

Coated microstrip with single dielectric below the trace

Coated microstrip is similar to the surface version, however the signal line is covered by a solder mask. This coating can lower the impedance by up to a few ohms depending on the type and thickness of the solder mask.

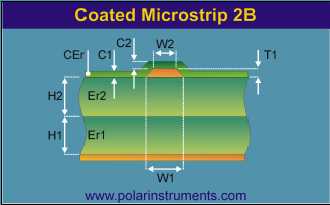

Coated microstrip with two dielectrics below the trace
