Adding PCB controlled impedance tests with the CITS880s Setup Wizard

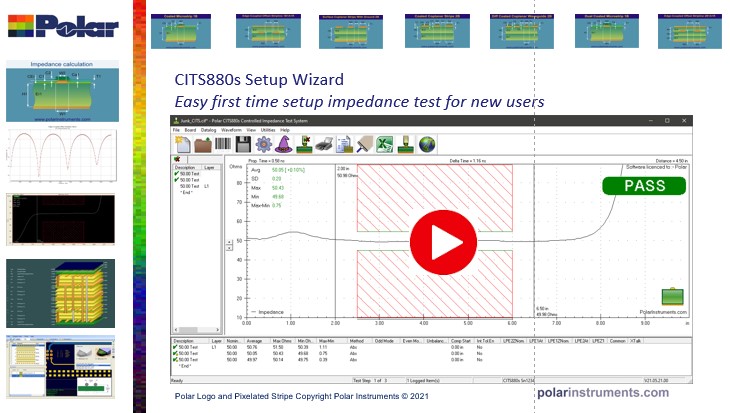

CITS880s Setup Wizard

Easy first time controlled impedance test setup with Polar CITS880s. Characteristic impedance testing for PCB traces and coupons made easy for new and returning operators

Contents

0:00 Introduction
0:15 Connecting the cable and probe
0:25 Starting the Wizard
0:40 Setting test parameters and establishing probe length
1:05 Establishing the length of the coupon trace
1:20 Using the cursors to fine tune the test region
2.08 Using the Editor to edit the test and add other tests
2:22 Contact information
