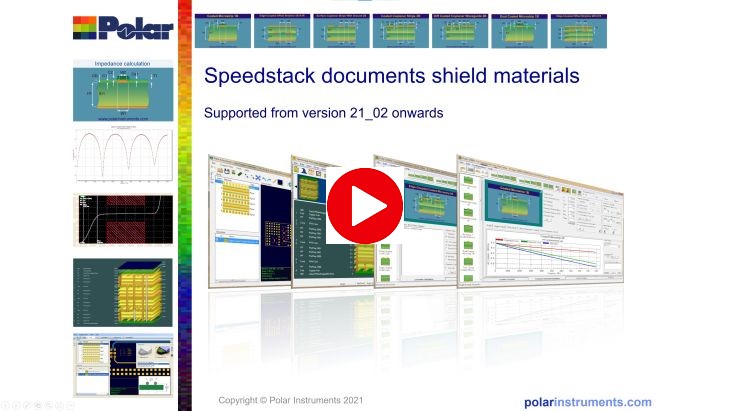

Documenting and modeling PCB stackup shield materials in Speedstack

Documenting shields in Speedstack

Adding shielding materials to stackups in Speedstack is enhanced post version 21_02 with the addition of dedicated shield material type in the library. Impedance and insertion loss modeling is also adapted to ensure the Df and Dk of the adhesive layer are included in the modeling - especially when using shields denoted "for high speed applications"

Contents

00:00 Introduction
00:15 Shield materials now documented in Speedstack
01:03 Shield material examples
01:37 Material library enhancements
02:15 Online library enhanced to support Shield materials
02:35 Export / Import Shield library to Excel
02:57 Stack Up editor enhancements
03:10 Shield properties
03:24 Controlled Impedance and insertion loss calculations
05:13 Technical report enhancements
05:44 Import / Export enhancements
06:07 Summary
06:55 Contact details
