Manufacturing Test and PCB Service and Repair Parts List

Accessories/Consumables

What's New?

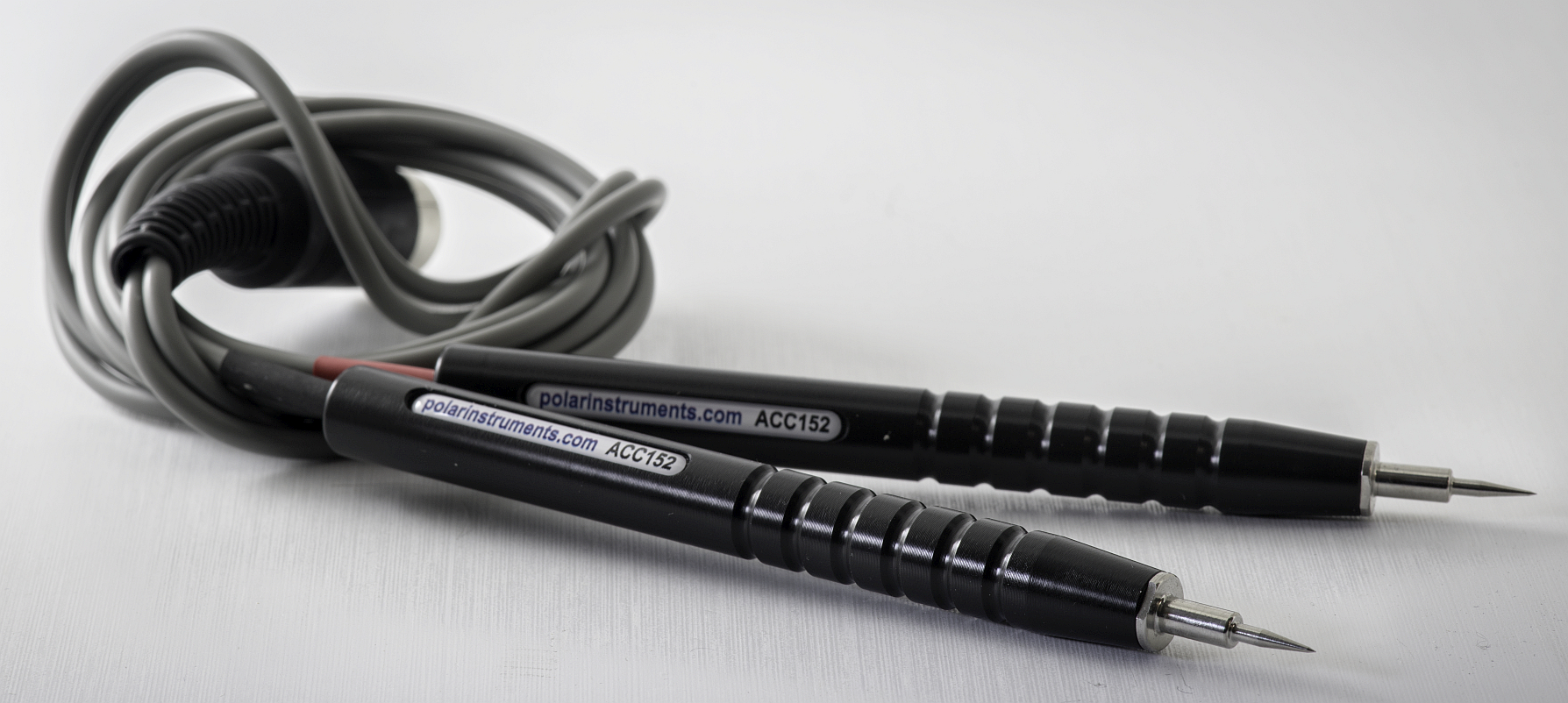

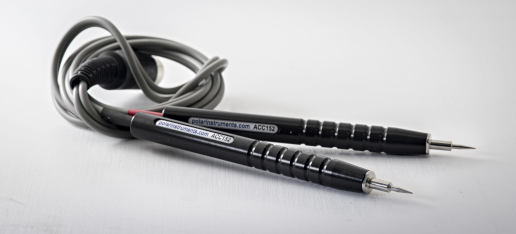

ACC152 Needle Probes for Toneohm 950

New ultra sharp Needle Probes for Toneohm 950

Accessory	Part number	Description	Details
	ACC152	Needle Probes	Used on: 700, 550, 550A, 850, 850A, 950, 970 Supersedes ACC32

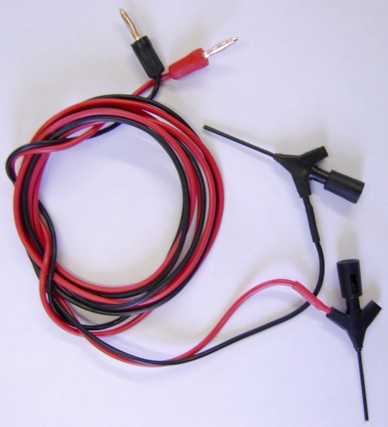

	ACC4	Drive Source Leads (OBSOLETE)	INFO ONLY Used on: 700
	ACC32	Needle Probes	Obsolete Replaced by ACC152

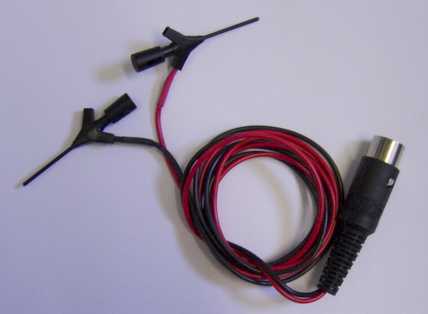

	ACC33	Drive Source Leads (OBSOLETE)	INFO ONLY Used on: 850A

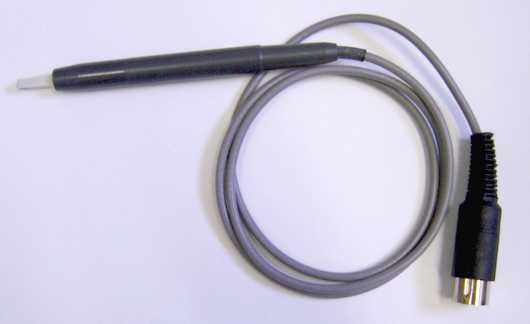

	ACC34	Current Probe	Used on: 850A

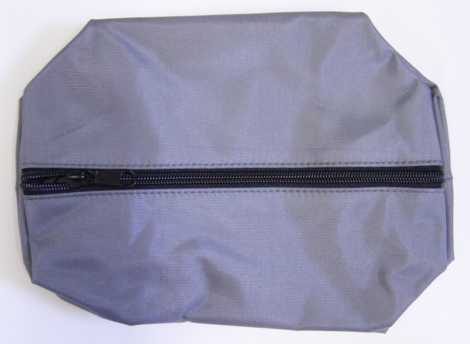

	ACC105	General purpose Polar bag

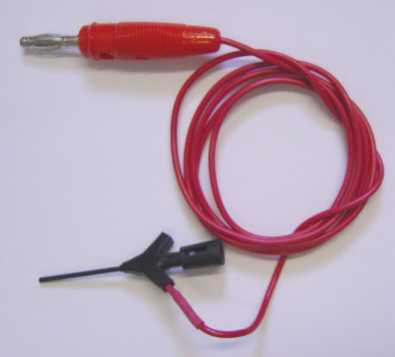

	ACC110	Grabber and Lead Red	Used on: T-Series PFL

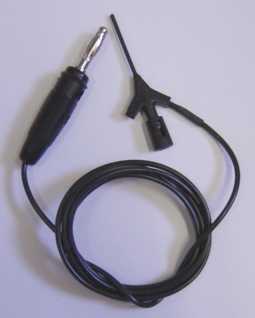

	ACC111	Grabber and Lead Black	Used on: T-Series PFL

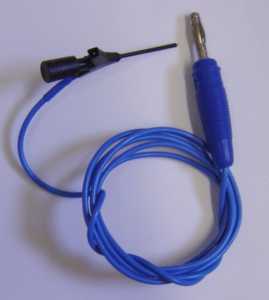

	ACC112	Grabber and Lea Blue	Used on: T-series PFL

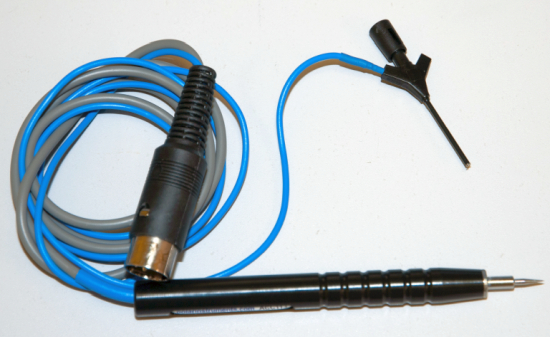

	ACC113	Plane Probe Assembly	Used on: Toneohm 950

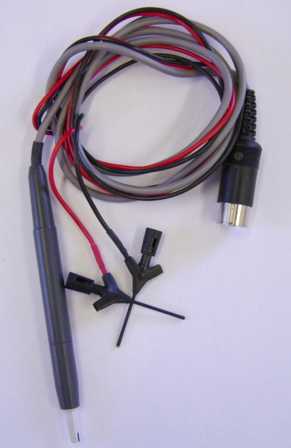

	ACC114	Current / Drive source probe	Used on: Toneohm 950
	ACC115	OBSOLESCENT Heavy Duty Grabber and Lead Red	Used on: Toneohm 950

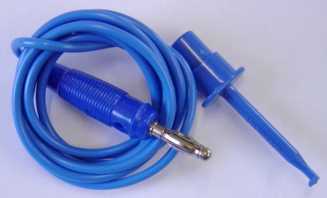

	ACC116	OBSOLESCENT Heavy Duty Grabber and Lead Blue	Used on: Toneohm 950
	ACC117	OBSOLESCENT Heavy Duty Grabber and Lead Yellow	Used on: Toneohm 950
	ACC118	OBSOLESCENT Heavy Duty Grabber and Lead Green	Used on: Toneohm 950

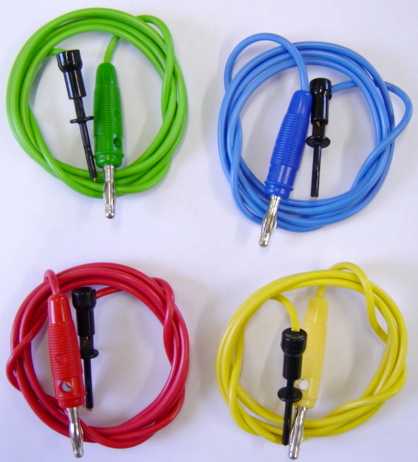

	ACC121/XG25 ACC121/XG31 ACC121/XG40	OBSOLETE Bare Board Stimulus Leads	INFO ONLY:Used on: Toneohm 950
	ACC124	Foot switch	Used on: T-Series PFL
	ACC127	Adaptor RS232 9-25 pin
	ACC132	OBSOLETE Pitch gauge

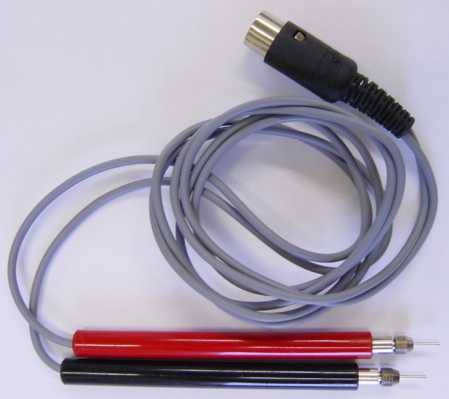

	ACC133	Needle Probes	Used on: 500a

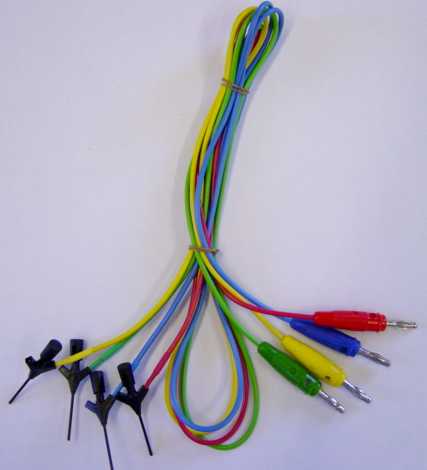

	ACC134	Grabber and Lead Red, Yellow, Green, Blue.	Used on: Toneohm 950

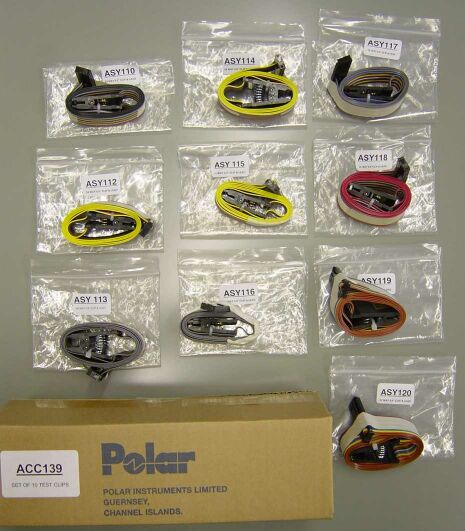

	ACC139	Test Clips pack of 10:

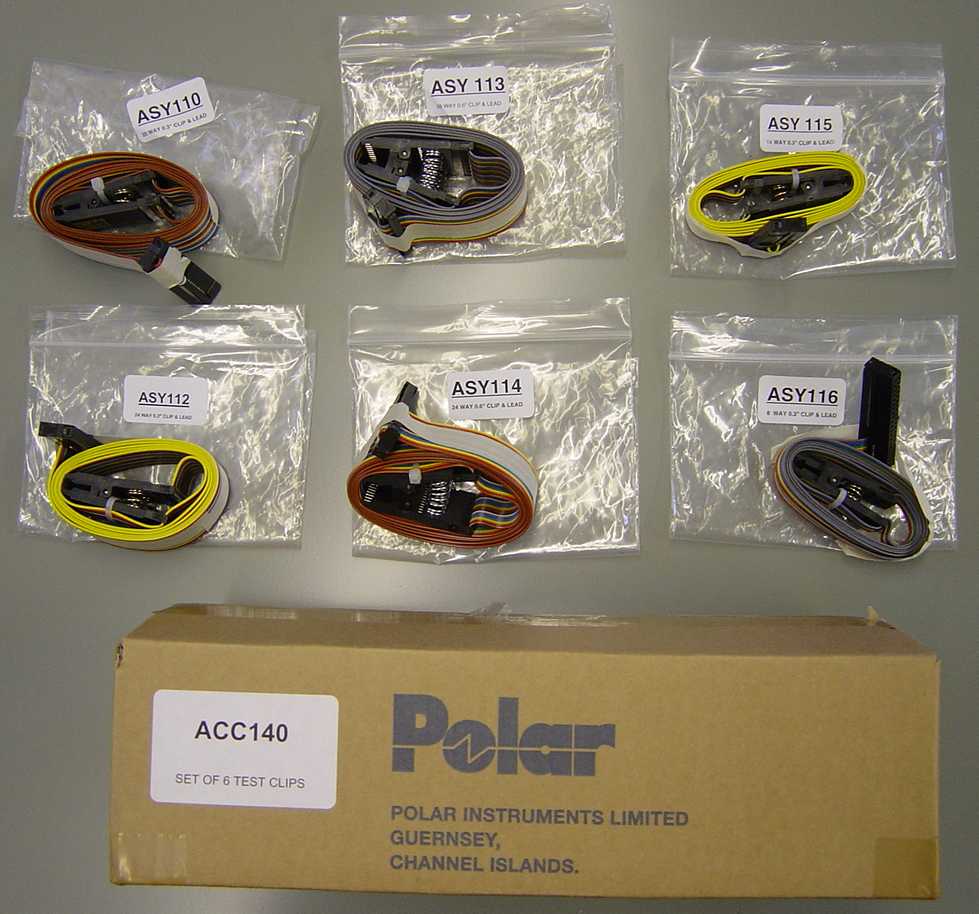

	ACC140	Test Clips pack of 6:	No longer available

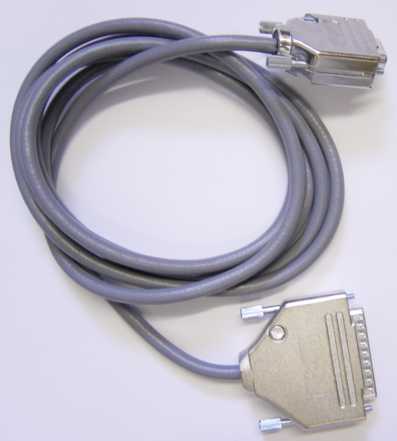

	ACC142	RS232 cable PFLLength: 2m	Used on: T-Series (Not T6000)

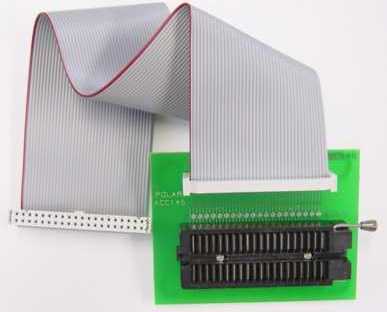

	ACC145	ZIF Test Fixture	Used on: T-Series PFL

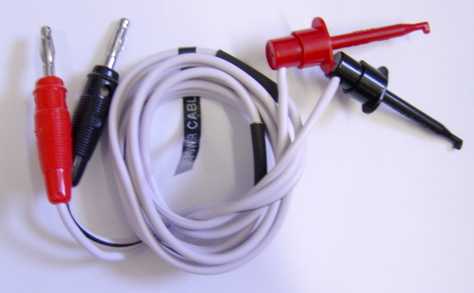

	ACC151	ICT Power	Used on: TD8000 PFL780
	ACC152	Needle Probes	Used on: 700, 550, 550A, 850, 850A, 950, 970 Supercedes ACC32

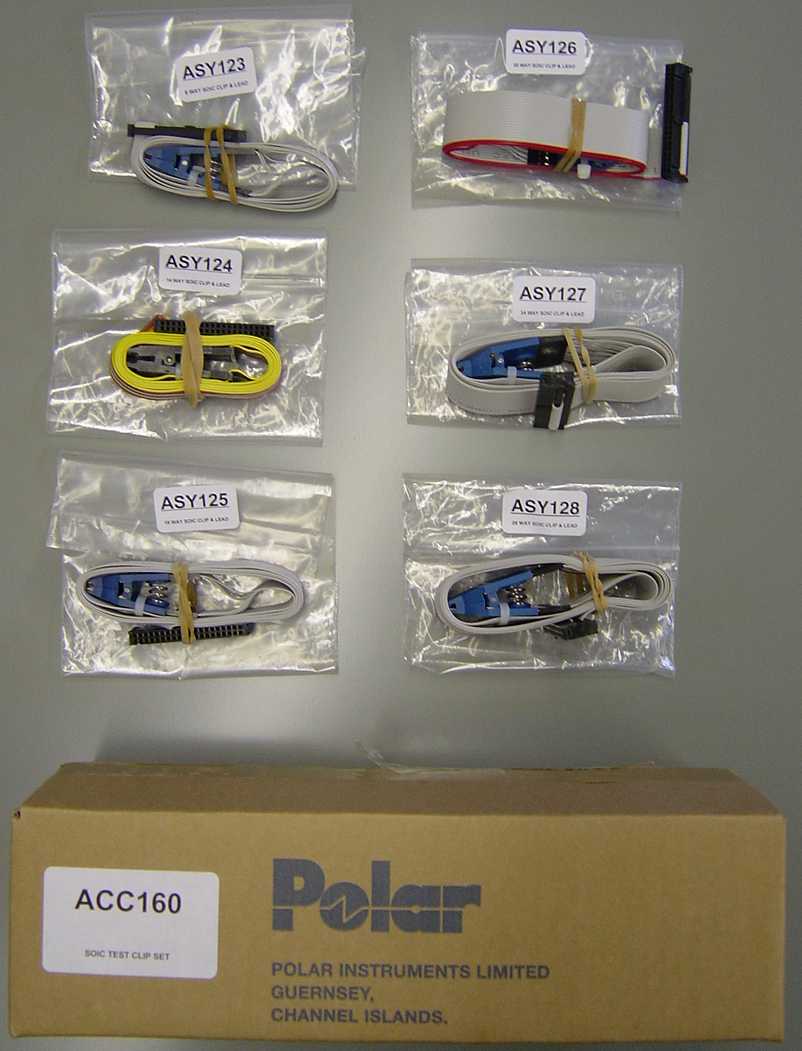

	ACC160	SOIC Test Clip set

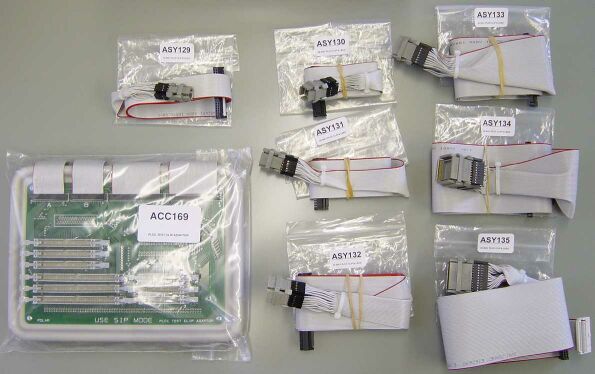

	ACC161	PLCC Test Clip set with adaptor	Used on: T4128 TD8000 PFL

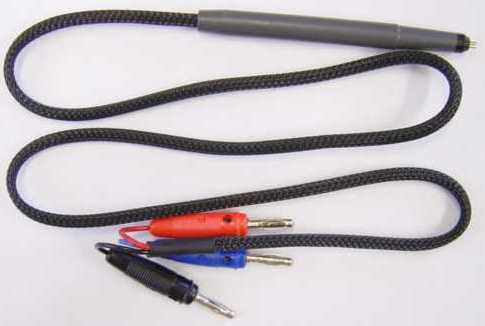

	ACC166	OBSOLETE Probe SOT transistor

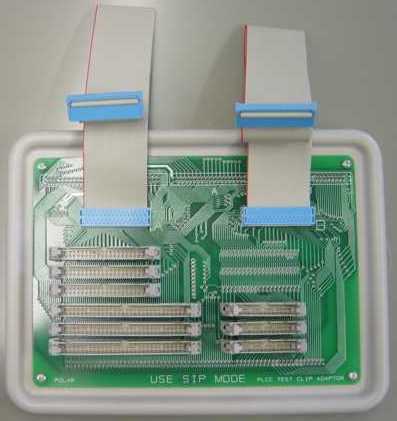

	ACC168	PLCC Test Clip Adaptor	For T6000

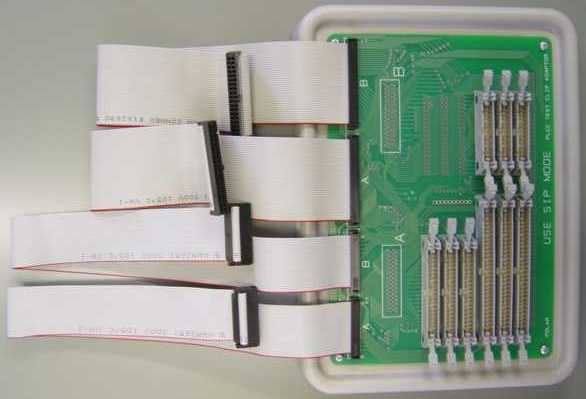

	ACC169	PLCC Test Clip Adaptor	Used on: T4128 TD8000 PFL

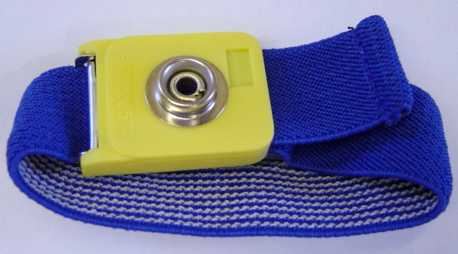

	ACC175	Antistatic wriststrap

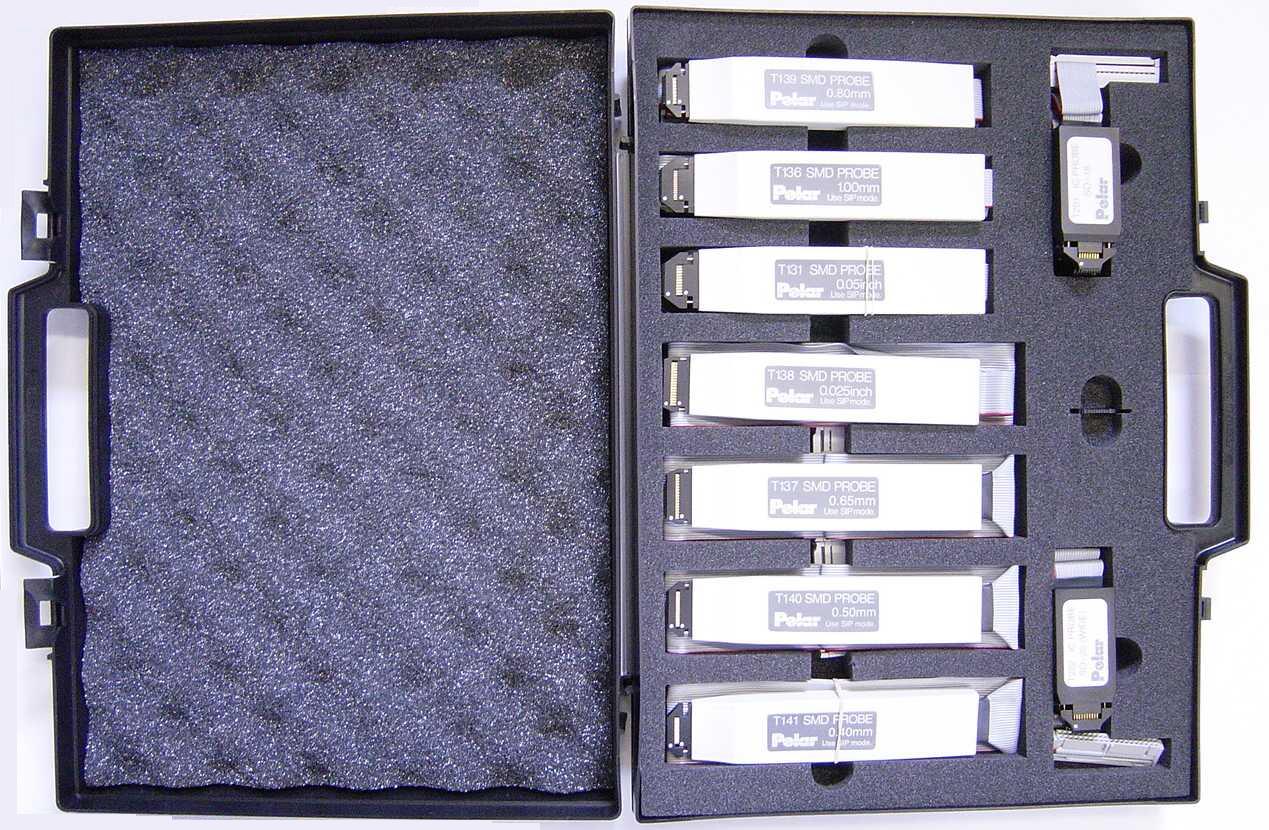

	ACC178	Polar SMD Probe Pack	No longer available

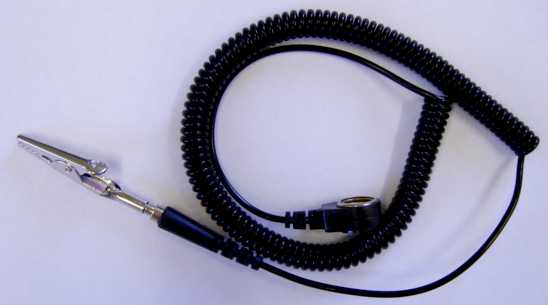

	ACC185	Ground cord

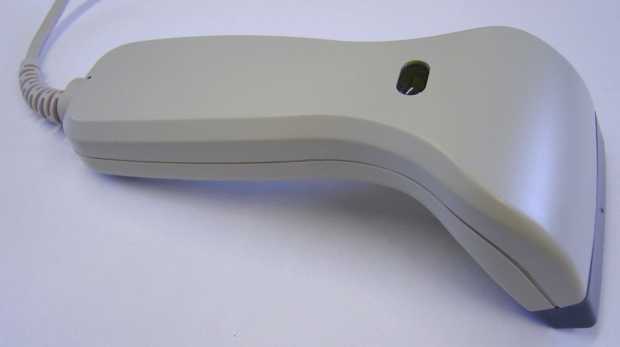

	ACC186	Barcode reader	No longer available

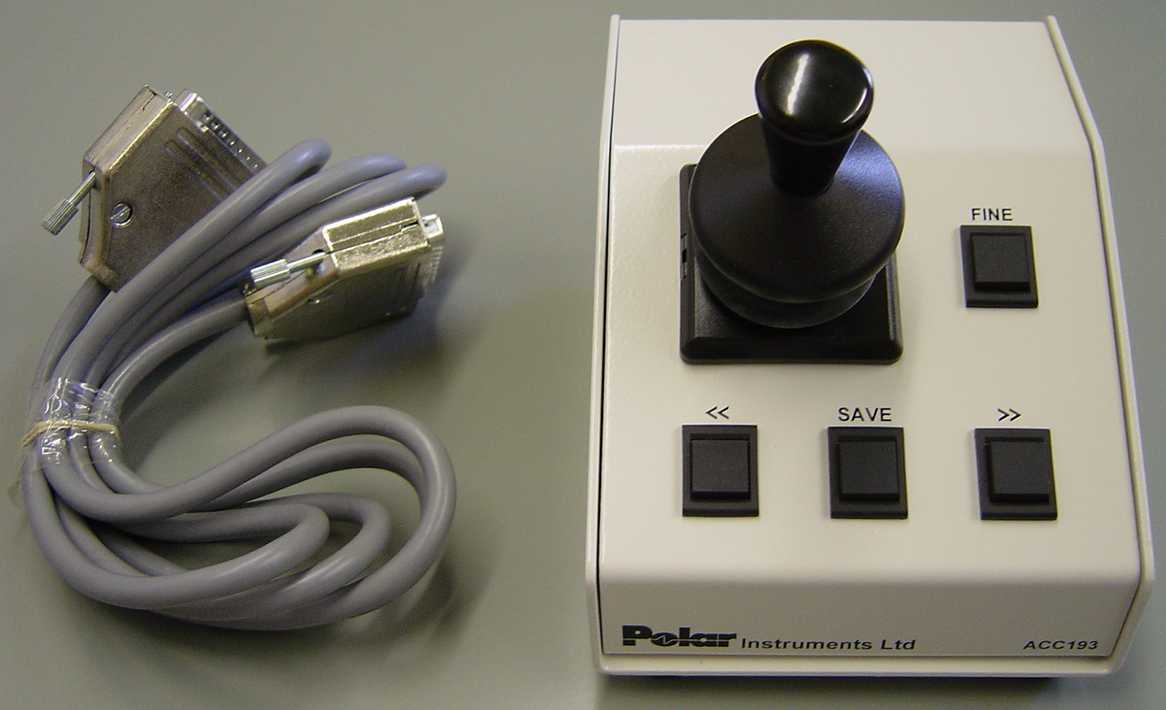

	ACC193 & ACC191	Joystick and cable	Used on: GRS500 FT100

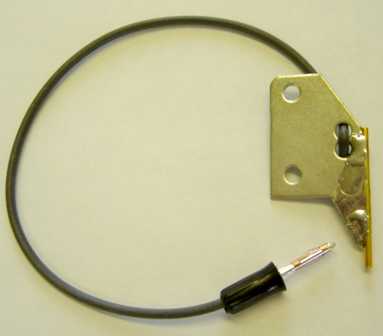

	ACC194	Test Pin Carrier Assembly	Used on: GRS500 FT100

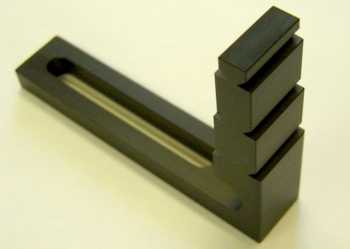

	ACC195	PCB clip	Used on: GRS500 FT100
	ACC196	Rear Plate Stop	Used on: GRS500 FT100

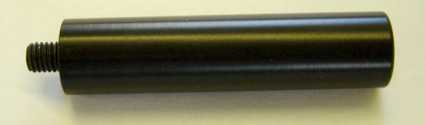

	ACC197	PCB tall centre support	Used on: GRS500 FT100

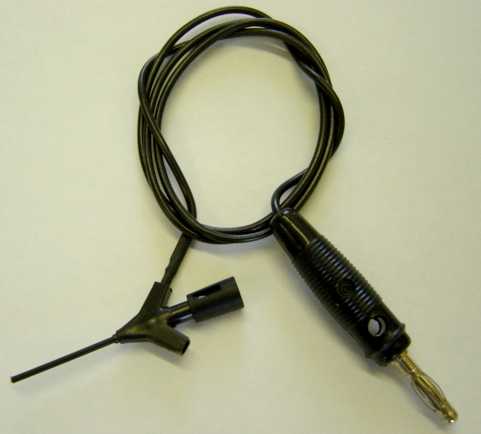

	ACC198	Grabber and Lead Black	Used on: GRS500 FT100

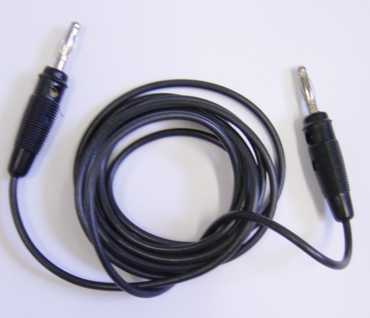

	ACC199	Prober-PFL Lead Black	Used on: GRS500 FT100

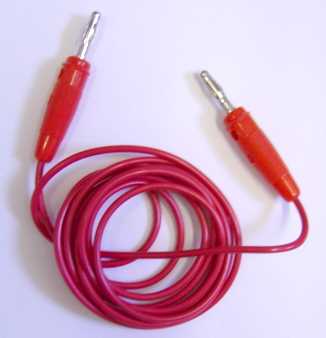

	ACC200	Prober-PFL Lead Red	Used on: GRS500 FT100
	ACC201	Calibration Block	Used on: GRS500 FT100

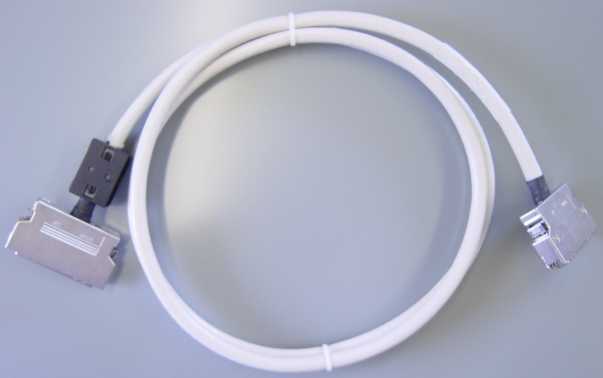

	ACC202	Compumotor cable Length: 1.5m	Used on: GRS500 FT100

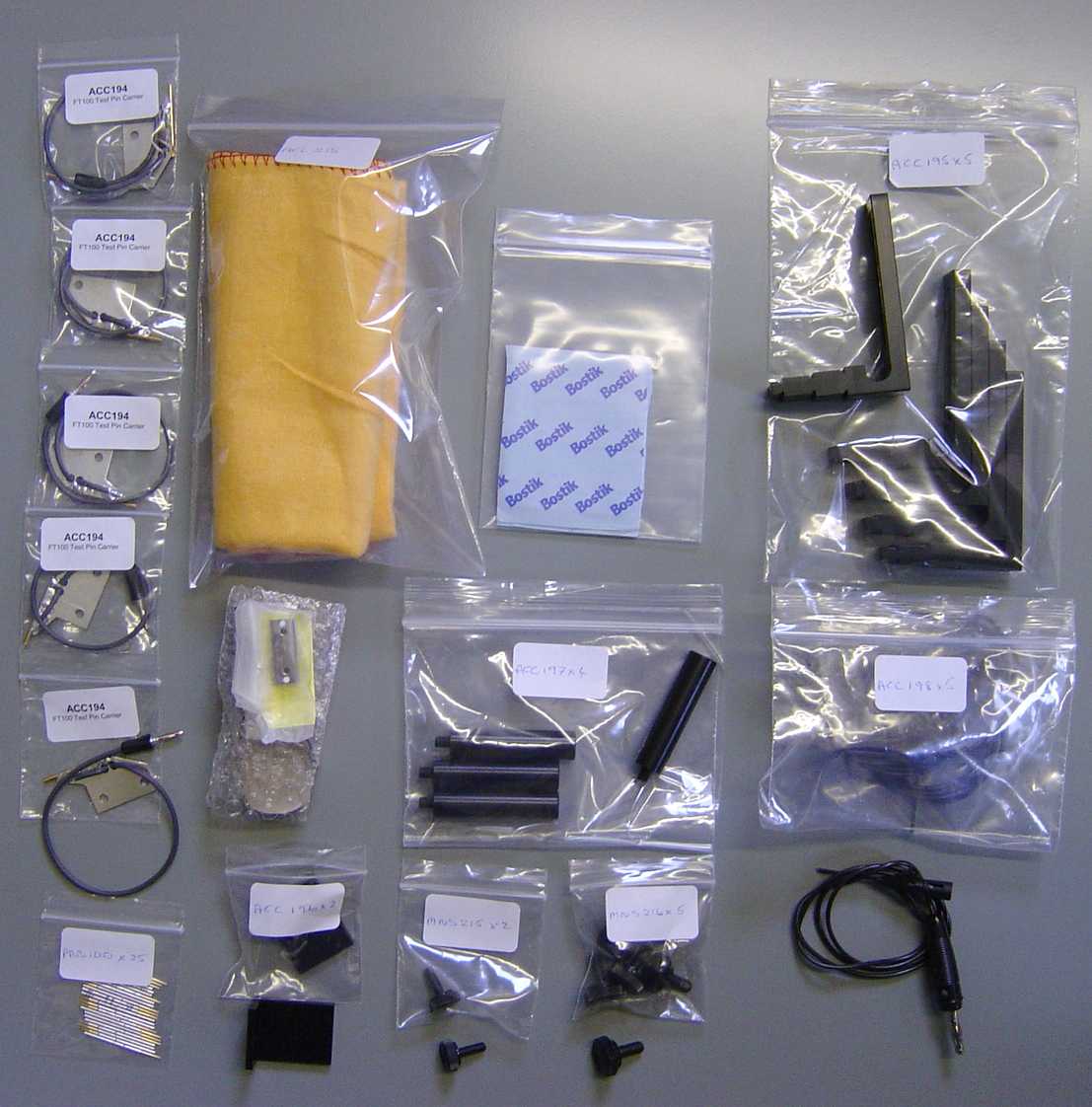

	ACC203	Consumables Pack	Used on: GRS500 FT100

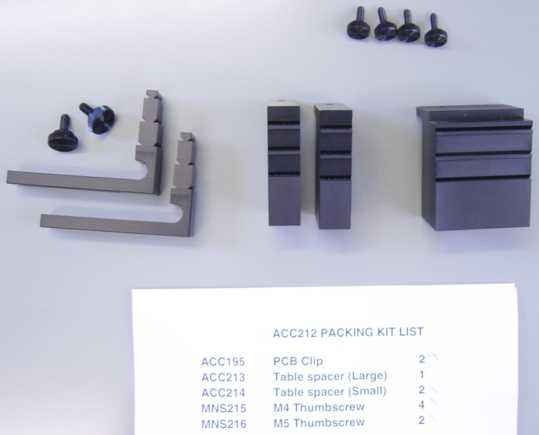

	ACC212	PCB mounting pack	Used on: GRS500 FT100

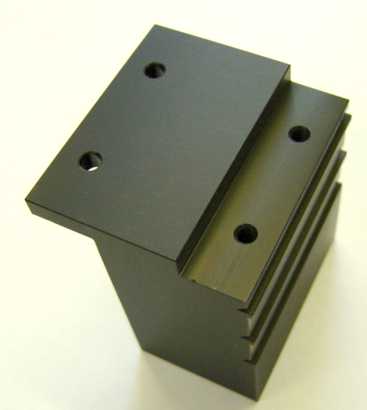

	ACC213	FT100 Table Spacer Large	Used on: GRS500 FT100

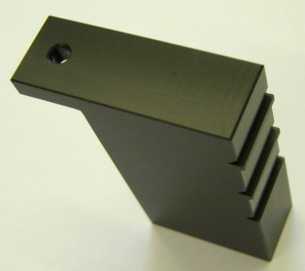

	ACC214	FT100 Table Spacer Small	Used on: GRS500 FT100

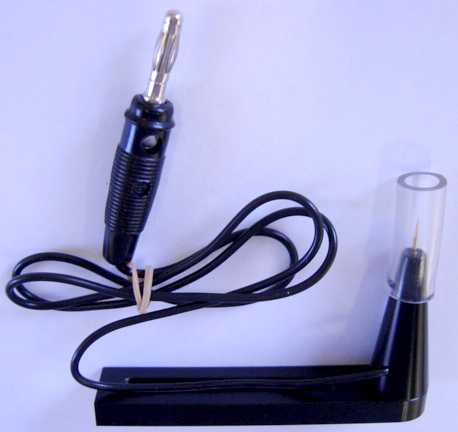

	ACC285	Spring Pin COM lead	Used on: GRS500 FT100

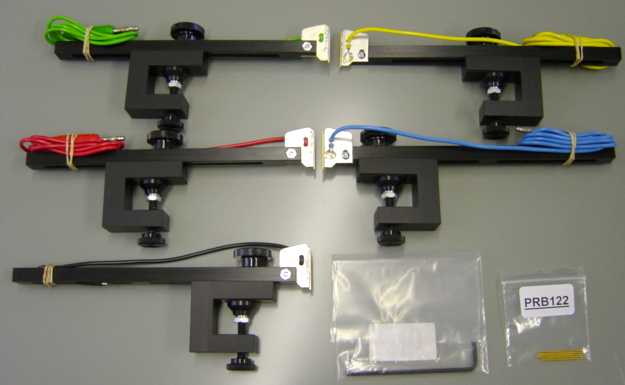

	ACC296	Bare board Stimulus leads	Used on: Toneohm 950. No longer available
	ACC305	Pack FT100/GRS500 Pins Pack of 25.	Used on: GRS500 FT100
	ACC316	GRS500 Lead Black	Used on: GRS500

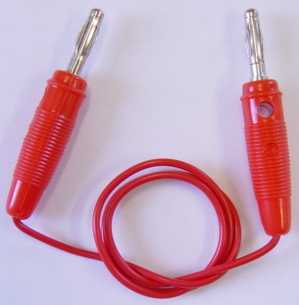

	ACC317	GRS500 Lead Red	Used on: GRS500

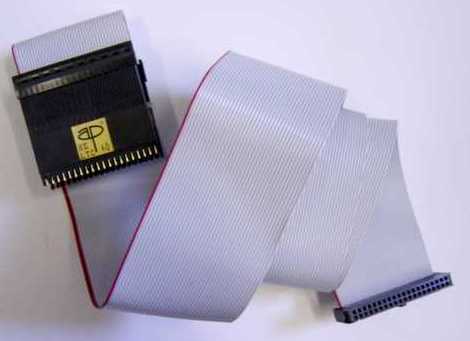

	ASY106	Test Clip and Cable 40 way	No longer available

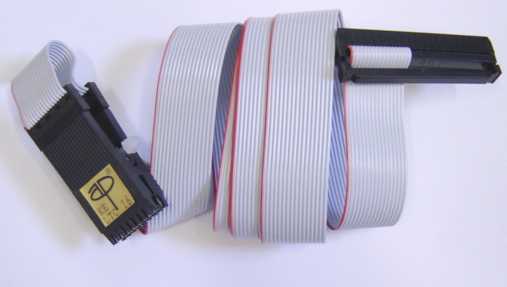

	ASY107	Test Clip and Cable 16 way	No longer available

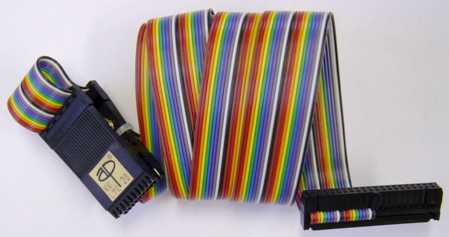

	ASY110	Test Clip and Cable 20 way	No longer available

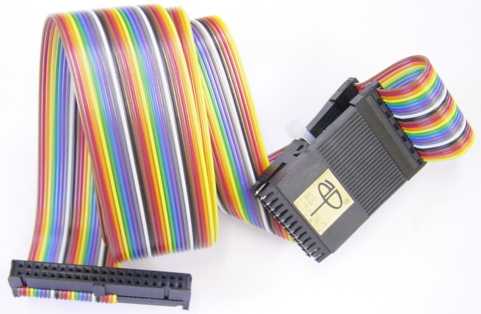

	ASY112	Test Clip and Cable 24 way 0.3"	No longer available

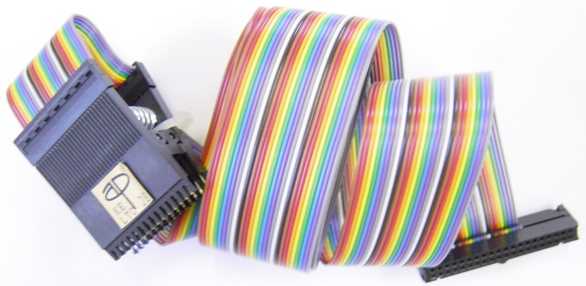

	ASY113	Test Clip and Cable 28 way	No longer available

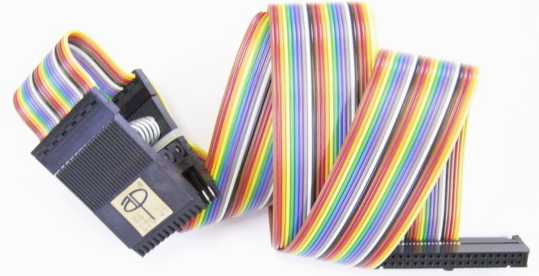

	ASY114	Test Clip and Cable 24 way 0.6"	No longer available

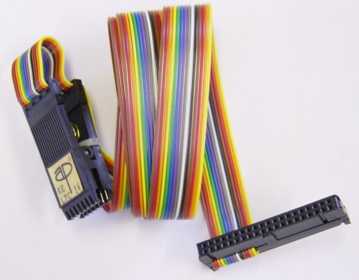

	ASY115	Test Clip and Cable 14 way	No longer available

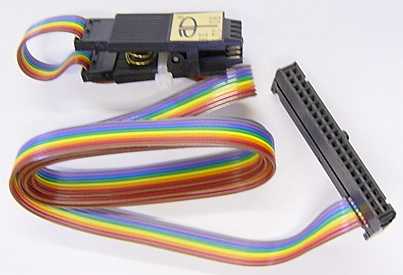

	ASY116	Test Clip and Cable 8 way	No longer available

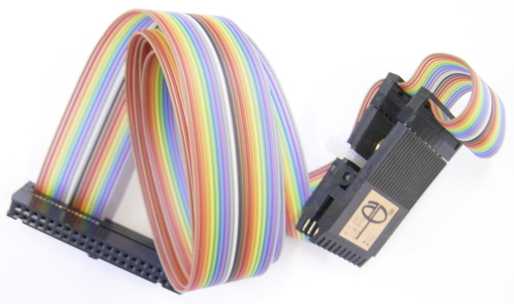

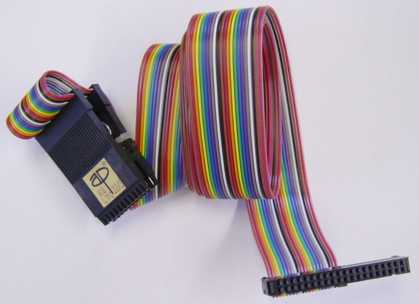

	ASY117	Test Clip and Cable 18 way 0.3"	No longer available
	ASY118	Test Clip and Cable 22 way 0.3"	No longer available

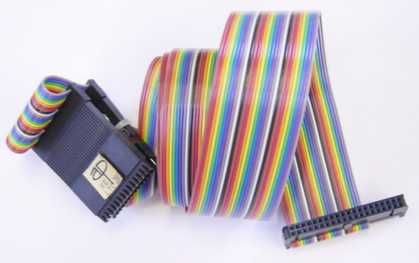

	ASY119	Test Clip and Cable 28 way 0.3"	No longer available

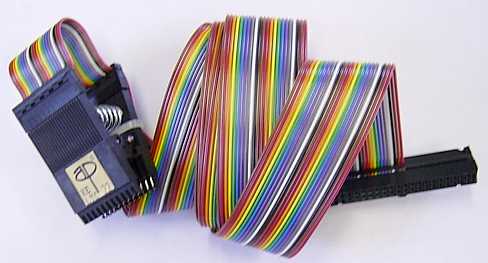

	ASY120	Test Clip and Cable 22 way 0.6"	No longer available

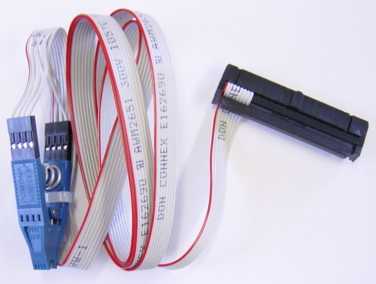

	ASY123	Test Clip and Cable 8 way SOIC	See ACC160

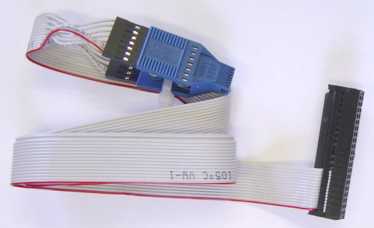

	ASY124	Test Clip and Cable 14 way SOIC	See ACC160

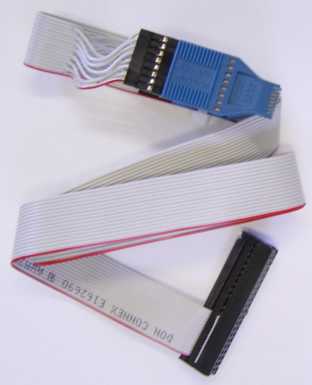

	ASY125	Test Clip and Cable 16 way SOIC	See ACC160

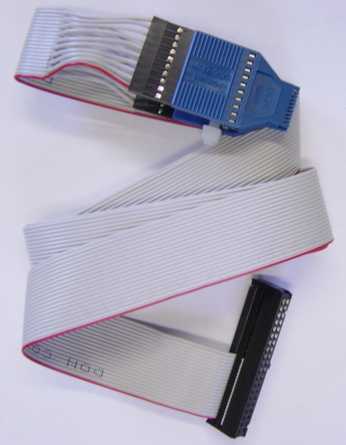

	ASY126	Test Clip and Cable 20 way SOIC	See ACC160

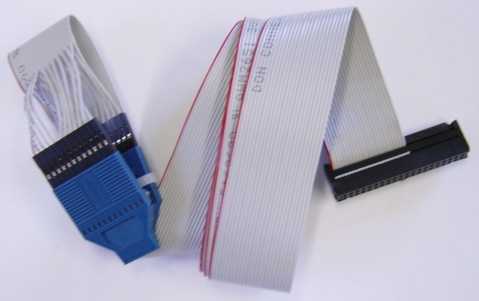

	ASY127	Test Clip and Cable 24 way SOIC	See ACC160

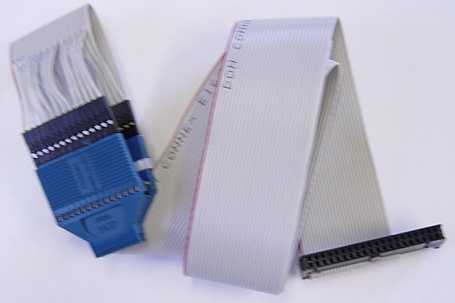

	ASY128	Test Clip and Cable 28 way SOIC	See ACC160

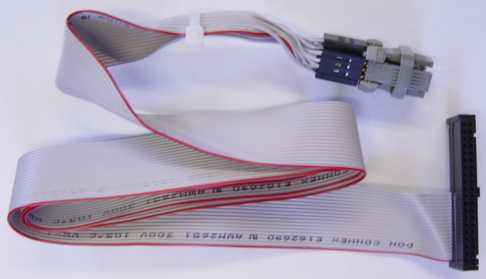

	ASY129	Test Clip and Cable 20 way PLCC	See ACC161

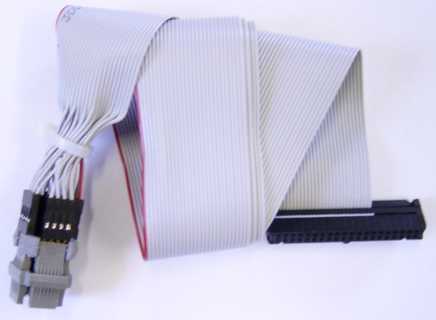

	ASY130	Test Clip and Cable 28 way PLCC	See ACC161

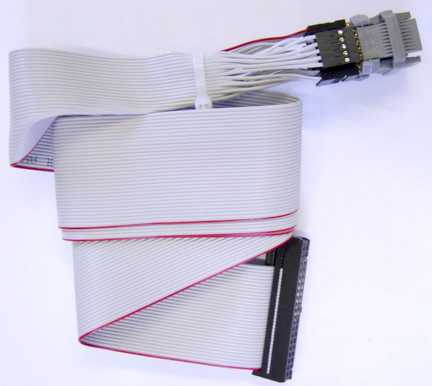

	ASY131	Test Clip and Cable 32 way PLCC	See ACC161

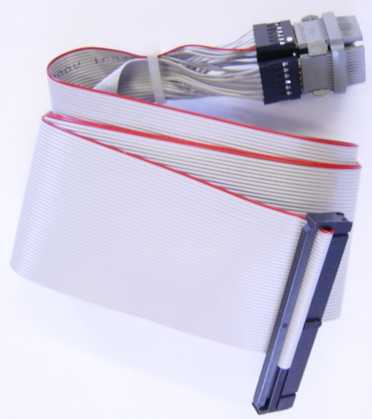

	ASY132	Test Clip and Cable 44 way PLCC	Requires ACC168/9 See ACC161

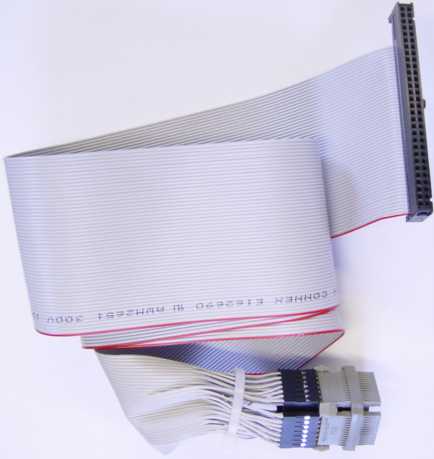

	ASY133	Test Clip and Cable 52 way PLCC	Requires ACC168/9 See ACC161

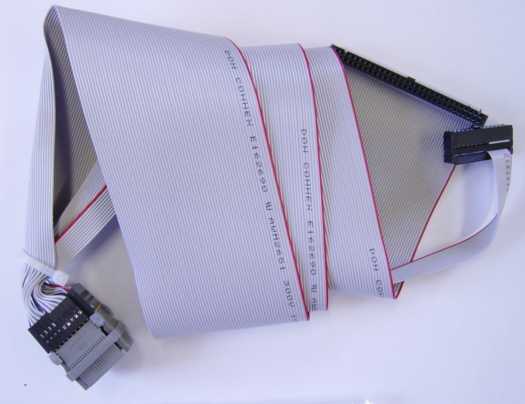

	ASY134	Test Clip and Cable 68 way PLCC	Requires ACC168/9 See ACC161

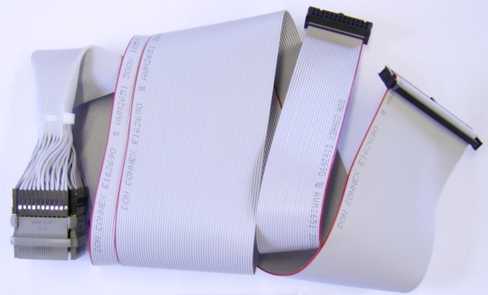

	ASY135	Test Clip and Cable 84 way PLCC	Requires ACC168/9 See ACC161

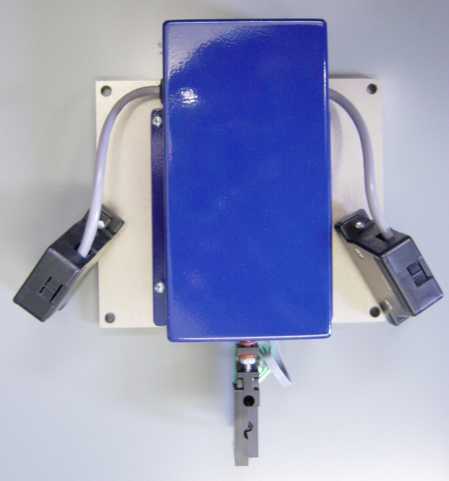

	MSA235	Probe Head GRS Quiet Probe	Used on: GRS500 FT100

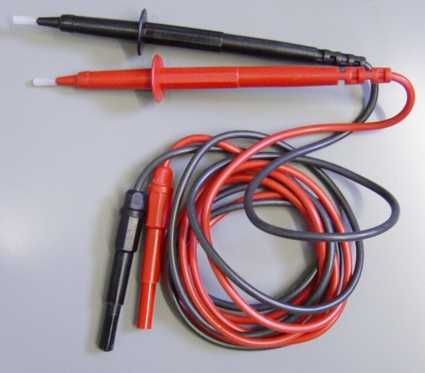

	MMP159	Probe set Red and Black	Used on: T-Series PFL

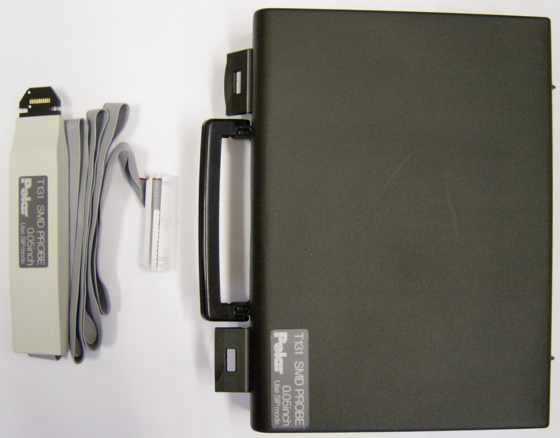

	T131	11 pin SMD Probe 0.050" pitch	No longer available

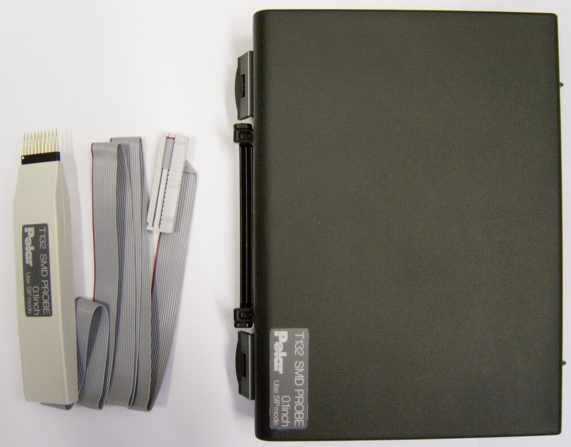

	T132	10 pin SMD Probe 0.1" pitch	No longer available
Obsolete Replaced by T138	T133	11 pin SMD Probe 0.025" pitch	No longer available
Obsolete Replaced by T137	T134	11 pin SMD Probe 0.65mm pitch	No longer available
Obsolete Replaced by T139	T135	10 pin SMD Probe 0.8mm pitch	No longer available

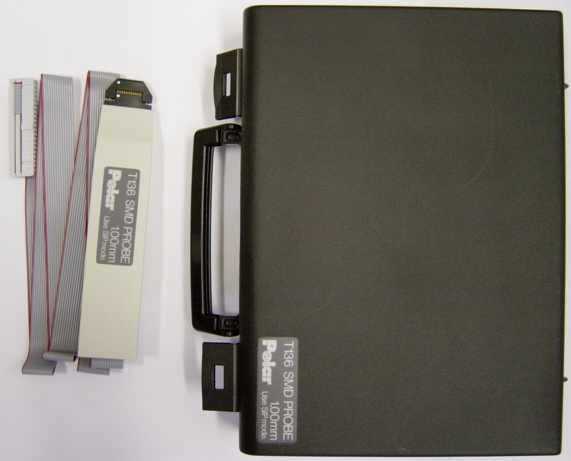

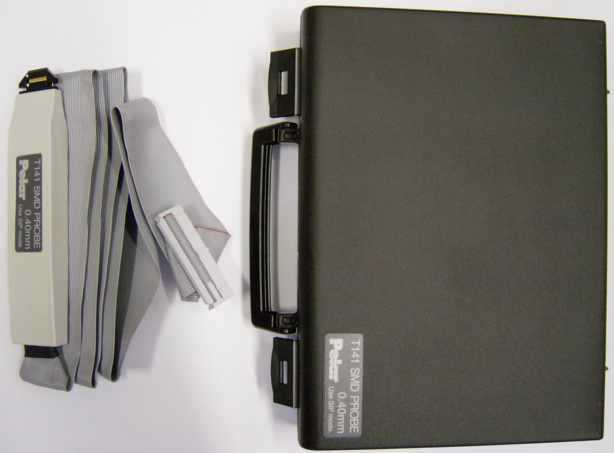

	T136	14 pin SMD Probe 1mm (0.039") pitch	No longer available

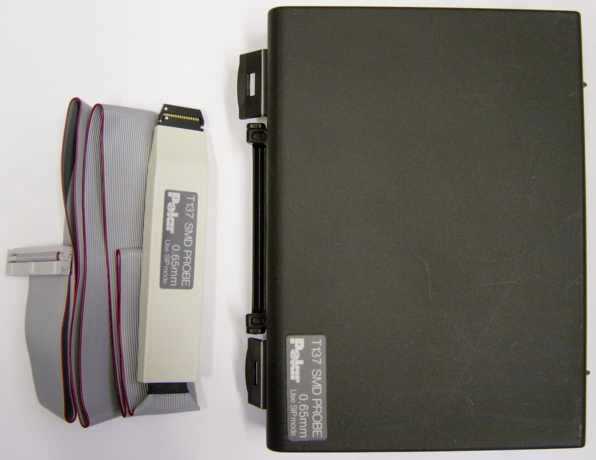

	T137	32 pin SMD Probe 0.65mm pitch	No longer available

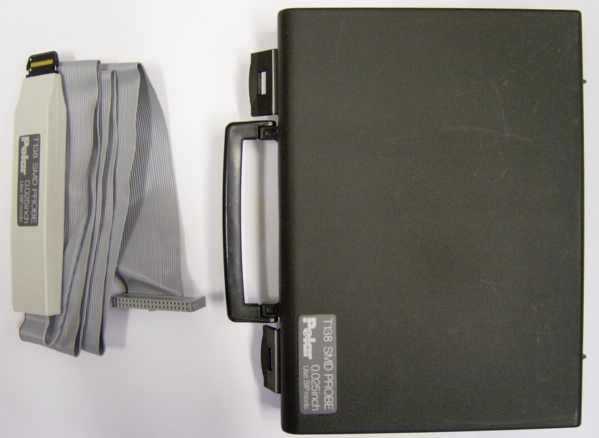

	T138	32 pin SMD Probe 0.025" pitch	No longer available

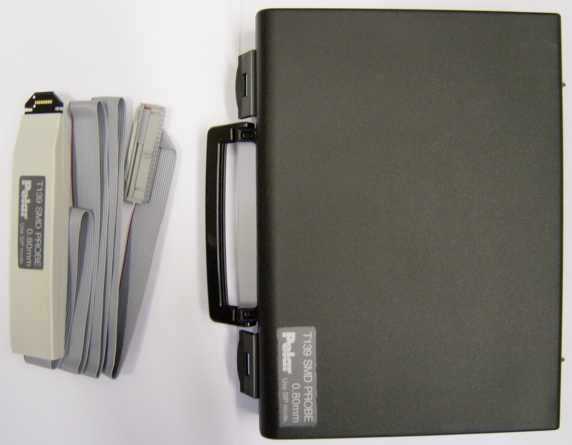

	T139	16 pin SMD Probe 0.8mm pitch	No longer available

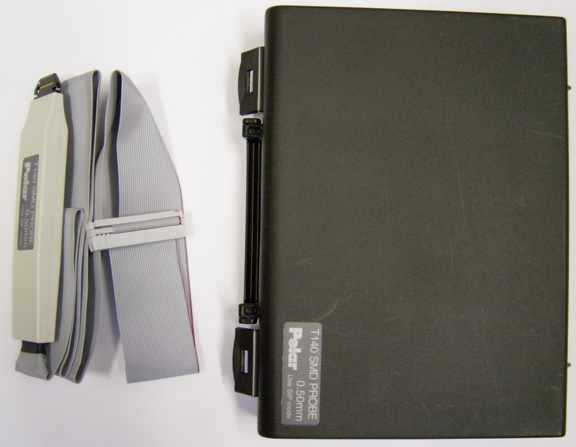

	T140	32 pin SMD Probe 0.5mm pitch	No longer available
	T141	32 pin SMD Probe 0.4mm pitch	No longer available

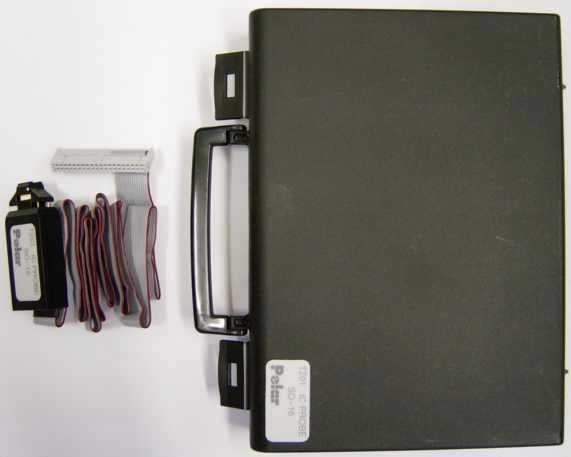

	T201	IC Probe SO-16	No longer available

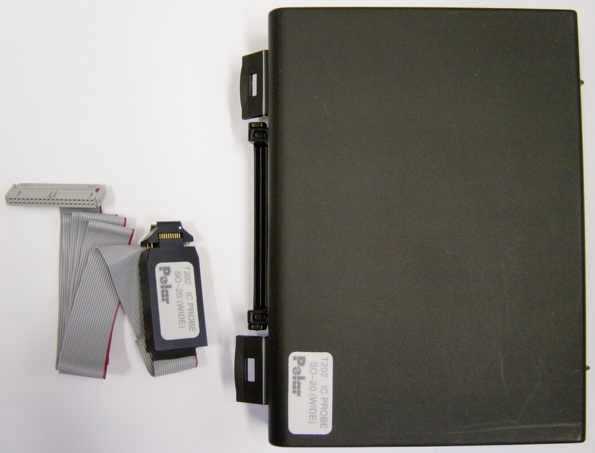

	T202	IC Probe SO-20W	No longer available

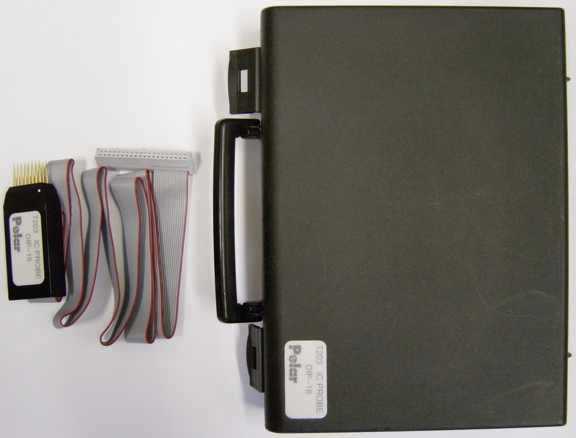

	T203	IC Probe DIP-16	No longer available

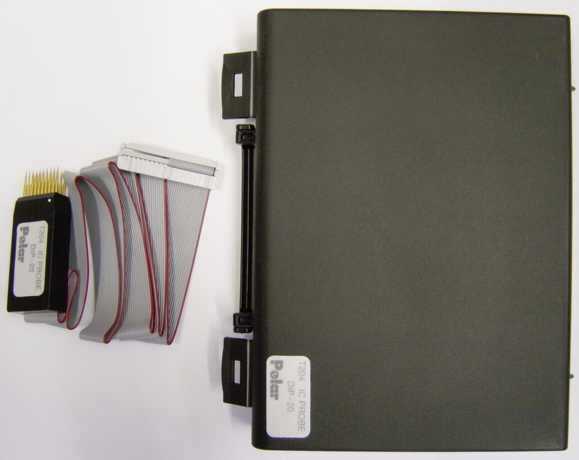

	T204	IC Probe DIP-20	No longer available

Service

Thumbnail	Part number	Description	Details

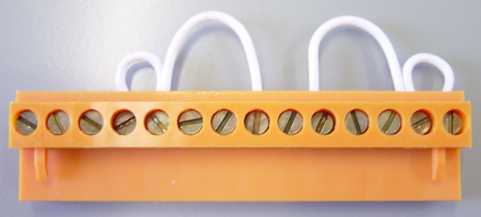

	ACC216	Test plug for safety circuits	Used on: GRS500 FT100

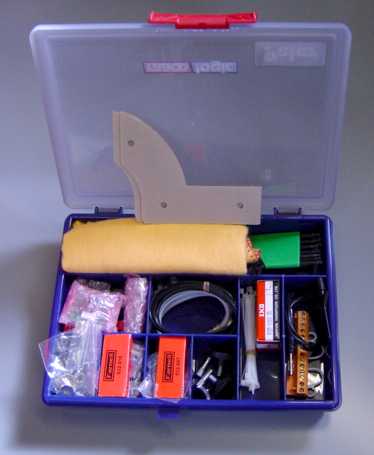

	ACC223	Spares kit	Used on: FT100 GRS500
	ACC225	Magnetic pickup tool

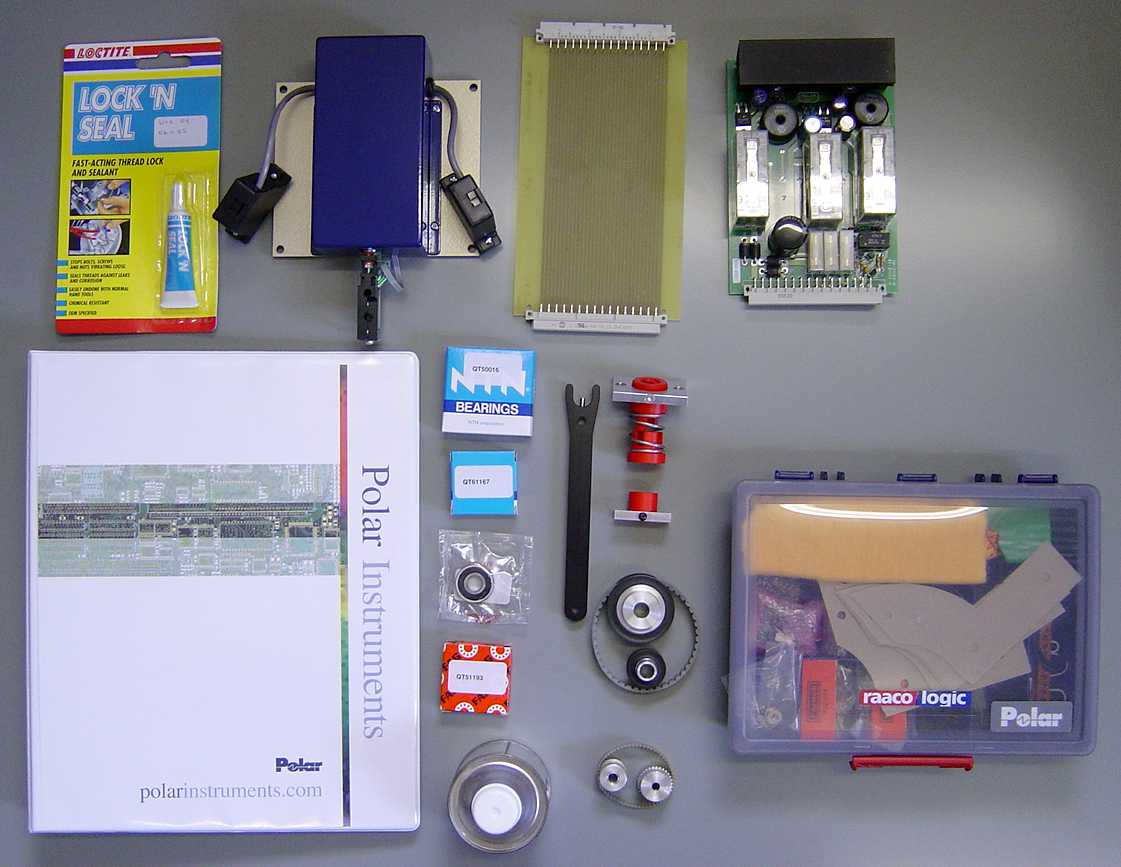

	ACC228	Service Support Kit	Used on: FT100 GRS500

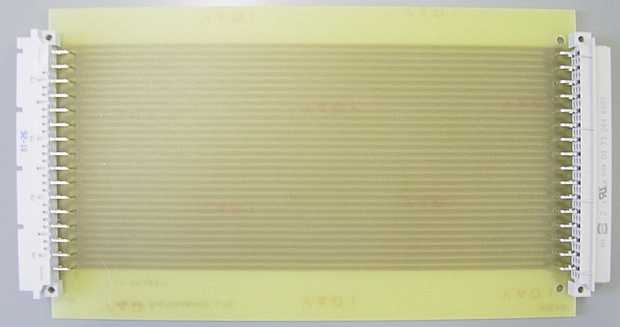

	ACC262	Card extender

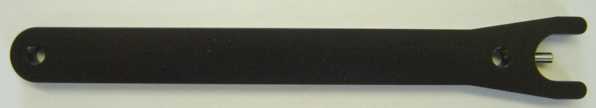

	ACC263	Leadscrew lock

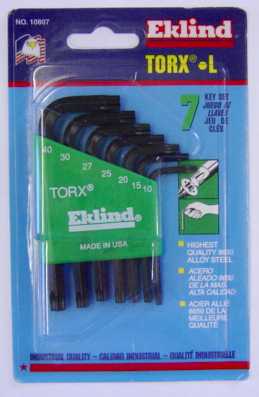

	ACC284	Torx key set

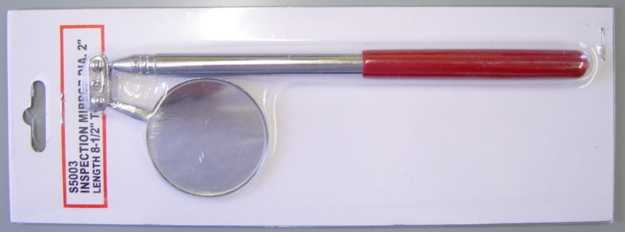

	ACC336	Telescopic mirror

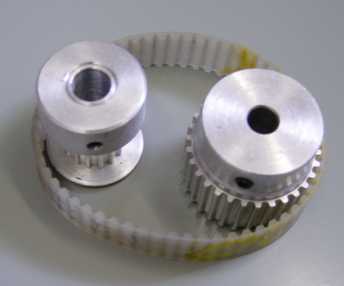

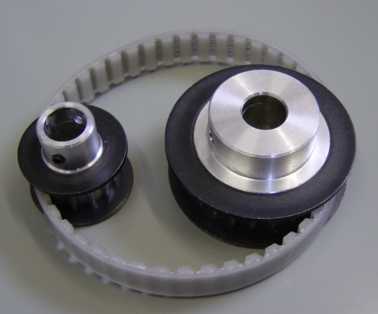

	MMP214	Drive gears and pulley X or Y-axis.	Used on: FT100 GRS500
	MMP215	Drive gears and pulley Z-axis.	Used on: FT100 GRS500
No picture	MPA192	Calibration Compound	Used on: FT100 GRS500
No picture	MPA197	Grease for Leadscrews	Used on: FT100 GRS500

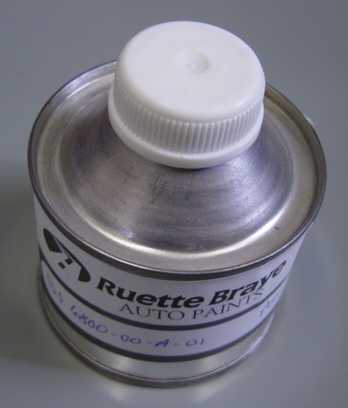

	MPA203	Touch up Paint

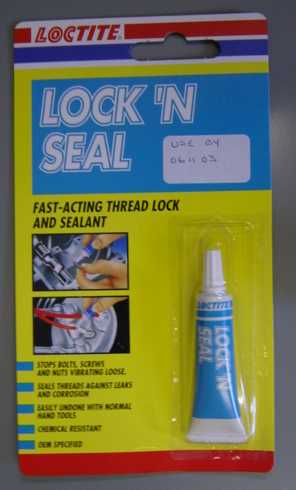

	MPA204	Thread Lock
No picture	MPA220	Light Oil for Slides	Used on: FT100 GRS500

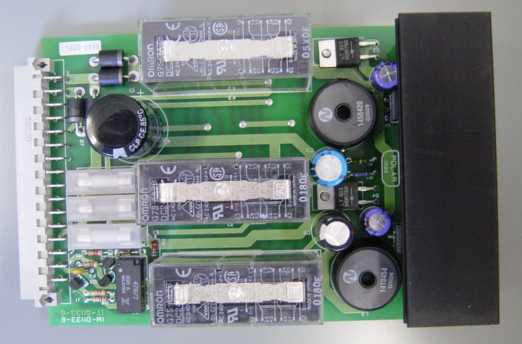

	MSA133	PSU / Safety	Used on: FT100 GRS500

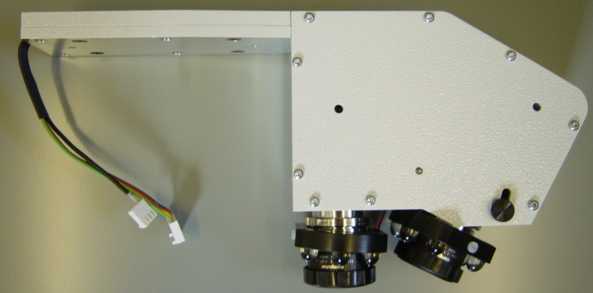

	MSA165	Dual Camera	Used on: FT100 GRS500
	MSA197	X or Y Nut Assembly	Used on: FT100 GRS500
	MSA198	Z Nut Assembly	Used on: FT100 GRS500
	ACC211	Camera monitor
	ACC322	LCD computer screen 17"
	ACC319	Replacement PC with ISA slot (No monitor).
