Calculating the resistance of printed circuit board tracks
Application Note AP144b

Calculating the resistance of printed circuit board tracks It is sometimes necessary to know the DC resistance of a track, and its resistance can be calculated from the formula R = ρ*L/A where
according to the international MKS standard of units. Track Resistance (R) A material with a higher resistivity ρ (the intrinsic quality to resist the flow of electricity) will exhibit higher track resistance. Therefore R α ρ A longer track length L will increase track resistance (electricity has to push its way through a longer path.) Therefore R α L A larger track crosssection A will decrease the track resistance (larger cross section means that it is easier for the electricity to pass through.) Therefore R α 1/A Resistance is therefore R = K* ρ* L/A where K is a constant. If we chose convenient units then K = 1, and the formula reduces to R = ρ*L/A Resistivity, ρ (Rho) What is ρ? The resistivity ρ of the metal is a measure of its intrinsic ability to resist the flow of electricity, and in MKS units is the resistance in Ohms between the two end faces of a piece of the material which is one square metre in cross section and one metre in length, and is given in "Ohm Metres" Sources will quote a variety of values for ρ. This is because the resistivity varies with material temperature, molecular structure (according to whether the material was electrodeposited, solidified from molten, rolled, annealed, etc.), impurity content, and more. For the purpose of this discussion, we assume that your material suppliers can provide the resistivity specification for their copper, or other metal, at room or operating temperature. A likely MKS figure for ρ for copper will be in the region of 1.65E8 Ohm Metres, or 0.0000000165 Ohm Metres. Adjusting Rho to suit the measurement units you use Confusion, terror and error often arise because some conversion of the MKS value for ρ is required to cope with the variety of units which are normally used in industry. Nobody measures track dimensions and areas in metres. In Metric units, microns (sometimes called micrometres with the symbol μm or mm) are more common for cross section dimensions. Track length is more normally in centimeters or millimeters (cm or mm) In American units, even more confusion reigns when converting to thousandths of an inch (old name "mil", now the IPC standard is "thou" or "thousandth") for the cross section, and inches for the length. Knowing that one metre is approximately 39.37 inches, you can derive a value of ρ which takes into account the units of your choice. See next. Typical adjusted values for Rho ρ You may find the following values of ρ to be useful in calculating resistance of tracks and connections. For copper:
For gold:

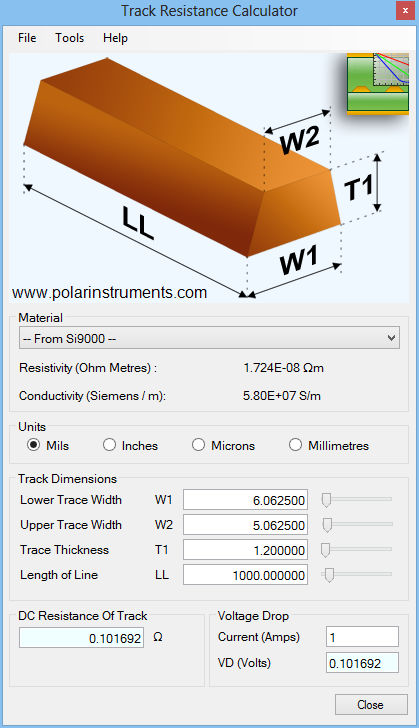

Cross Section Area (A) The typical cross sectional profile of an etched track is trapezoidal, illustrated by the figure. The cross sectional area, A, of a trapezoid is found from the equation A = 0.5*(W1 + W2)*T1 However, the formula R =ρL/A holds whatever the cross sectional shape. You simply have to calculate A for that shape. Making the calculation easy Polar's Track Resistance Calculator is available as an option for the Si8000 and Si9000. It includes a dialog box that can read in the current structure values from the field solver or allow you enter material type, track shape and length; the Track Resistance Calculator will give you an answer in Ohms for the trace you describe. You'll find the Track Resistance Calculator useful for power supply applications or if you are working on fine geometries and need to consider series loss.
