The RIE loss / attenuation measurement method and PCB manufacture
Application Note AP8170

Note: The RIE (Root Impulse Energy) loss measurement technique is a loss measurement technology that was explored but is no longer supported by Polar Instruments – this note is included in the Polar Signal Integrity Application Note series for historical interest. RIE has been superseded by the SET2DIL methodology (see AP8168 – PCB fabrication techniques for lossy transmission lines) as used in Polar's Atlas PCB lossy line test system.

The RIE loss / attenuation measurement method and PCB manufacture

What is RIE?

RIE (Root Impulse Energy) testing is one of 4 PCB material loss (attenuation) measurement methods which will be included in IPC-TM-650 Method (Time Domain Loss) when it is finally published in mid-2009. This test method is aimed at the manufacturing shop floor to provide a relatively straight-forward method of monitoring the high frequency performance of PCBs to ensure they stay within an acceptable loss budget.

What is Loss?

Signals propagating through a system lose strength while encountering both natural and manmade obstacles; signal loss is generally measured in decibels. If a signal enters one end of a PCB trace and is only half the size at the other end then that trace has significant loss. If losses are too great not enough signal will get to the other end to make the system work reliably. Conversely, one might also infer that too little loss indicates that you may have used materials which are too high performance and therefore too costly in the stack up.  At lower frequencies (i.e. at frequencies up to about 1GHz) loss was not seen as a major concern. However, loss is now becoming a factor in PCB designs because of changing technology (for example, very high speed multi-gigabit-per-second serial buses) which is running at ever higher speeds. At data transmission rates above about 5Gbps loss matters.

Doesn't the controlled impedance test check for this already?

No, controlled impedance test and RIE testing are complementary but do not test the same things. At these very high speeds you need both measurement techniques — you can't measure loss without confirming the controlled impedance performance first.

What does an RIE test involve?

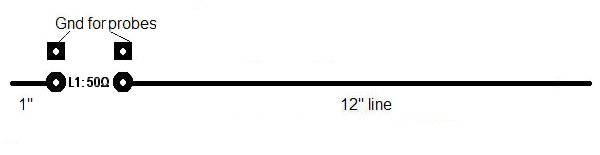

First, it needs a special coupon on the panel. The coupon typically includes a short reference trace and a longer measurement, or test, trace. In the 50 Ohm example below (not drawn to scale) the reference trace is 1" in length, the measurement trace 12".

Probe footprint

In practice, the measurement trace will be aligned so as to avoid the trace running with the warp or weft of the material, thus minimizing the effect of dielectric variation sometimes caused by trace alignment with the fibre weave. A typical zigzag measurement trace routing is shown in the sample coupon below. The test coupon was generated using the Polar Instruments' CGen Coupon Generator.

Using Polar's CGen Coupon Generator the PCB designer or fabricator can create test coupons from scratch or take impedance controlled stackup information directly from Speedstack PCB or Speedstack Si and generate the appropriate impedance test coupon containing all the required PCB controlled impedance transmission line structures.

RIE coupon

The coupon is tested with a TDR tester in much the same way as for controlled impedance. The RIE test does not replace conventional impedance control techniques that are currently in use; in fact one of the tests conducted is designed to make sure the coupon is a 50 Ohms impedance. The TDR waveforms are sent as a data file to the computer and processed using complex maths to analyse and extract the changes which have occurred to the pulse as it travelled down the coupon (and back). The final outcome is a number which is a figure of merit for the board related to its loss characteristics. Use different material in the stack up and you will get a different number; a bigger number means more loss.

Is RIE testing suitable for the production environment?

Tests conducted by Polar and Intel show that RIE testing is a practical and achievable test method; it is easily deployed and offers, for example, repeatable, reliable discrimination between PCBs fabricated with a range of varying base material loss characteristics. At this time, however, there are no standards for loss in the way the industry has airlines for impedance standards. Airlines can be calibrated to national standards and are recognised as a reliable point of reference. Work is under way to try to establish standards for loss. However, until such standards are widely available OEMS will need to establish their own internal standards and share these with their fabrication partners to ensure correlation between sites.


Towards a PCB Production Floor Metric for Go/No Go Testing of Lossy High-Speed Transmission LinesBrandon Gore, Richard Mellitz, Jeff Loyer, Intel Martyn Gaudion, Jean Burnikell, Paul Carré, Polar Instruments IPC, 2008 (U.S. Best paper at the 2008 IPC Printed Circuits Expo® and APEX® and the Designers' Summit)
