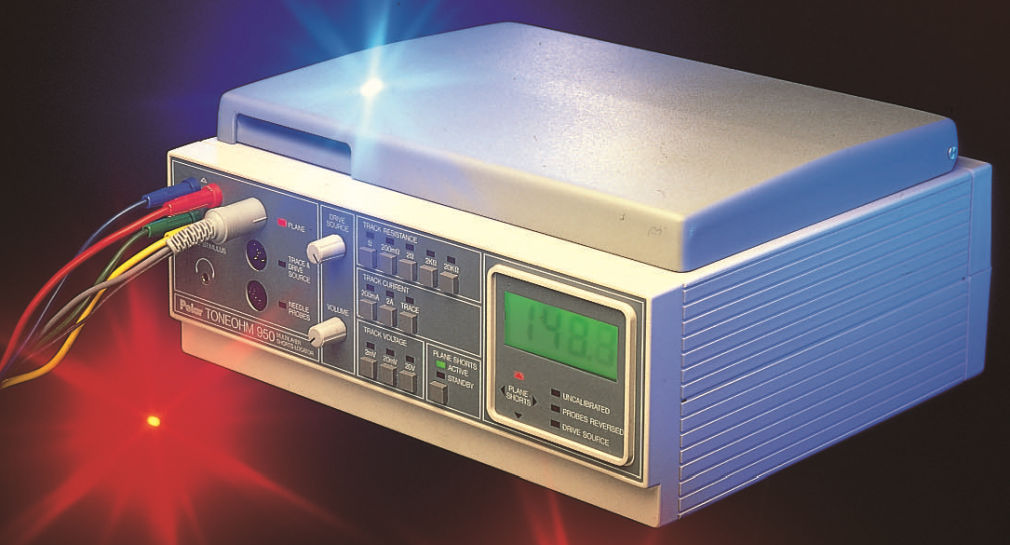

Toneohm 950 – multi-layer short circuit locator

Toneohm950

Polar Toneohms are ideal tools for the electronics production environment. Able to locate shorts quickly and accurately on both bare and loaded PCBs, they provide a very cost-effective means of minimizing repair and rework of faulty PCBs that have been identified by pass/fail testing on an ATE system.

Manufacturers and assemblers of electronic printed circuit boards are constantly striving to:

Increase production throughput
Minimize rejects and scrap
Reduce rework time and cost
Maintain and improve quality

A significant percentage of electronics manufacturing and in-service defects are caused by PCB short-circuits or faulty devices loading the circuit. Automatic pcb test equipment or conventional fault detection techniques can be used to diagnose the presence of shorts, but not their physical location.

In recent years, shorts location has become more difficult due to the introduction of:

Multilayer boards
Bus-structured circuits
Densely-packed components
Surface-mount
Fine-line tracks
Power and earth planes

The Toneohm 950 represents the definitive solution to all these problems. Employing innovative Vectored Plane Stimulus techniques, the instrument provides fast and accurate guidance to the origin of PCB shorts. From an operator's point of view, nothing could be easier to use - you just follow the arrows on the instrument's front panel!

Why do you need the Toneohm 950?

PCBs are becoming more complex and valuable in terms of both cost and the requirements for 100% yield in the production process. Witness the very rapid growth in multilayer fabrication techniques, surface-mount technology and just-in-time manufacturing. You simply cannot afford to spend excessive time locating faults such as short-circuits, since this adds cost and reduces quality. Scrapping the board results in even higher costs and unacceptable shortfalls in production yield.

Since a significant percentage of process faults are caused by shorts - some independent analysts place the figure as high as 60% - you need help in locating these with a minimum of rework. The introduction of power and earth planes on multilayer boards has further compounded the problem, making the task nearly impossible with conventional fault-finding tools.

How is the Toneohm 950 used?

The Toneohm 950 can be used by a non-technical operator, and provides a non-destructive means of tracing short-circuits to their point of origin. The instrument offers four operating modes, which cover virtually all categories of hard and soft PCB shorts, including etch problems, solder bridges, stuck bus lines and faulty decoupling capacitors.

In addition to high-sensitivity Track Resistance and Track Voltage modes, Toneohm 950s provide a completely non-invasive means of measuring PCB track current - without requiring you to break or cut the circuit. Employing a non-contact current-sensing probe, the Track Current mode facilitates easy location of Vcc-to-ground shorts, and of faults in bus-structured boards such as backplanes and memory banks. A backlit liquid crystal display provides clear indication of relative measurement values, and an audio tone enables you to walk the probes along the shorted tracks without even looking at the instrument - the highest tone will indicate the short.

For shorts on multilayer PCBs with power or earth planes, the Toneohm 950 offers users a powerful fault location technique known as Vectored Plane Stimulus.

How does Vectored Plane Stimulus work?

The ground and power planes of multilayer PCBs make it impossible for conventional test tools to accurately locate the origin of short-circuits. Polar's Vectored Plane Stimulus uses a combination of current injection and field sensing techniques to overcome these problems, enabling you to rapidly home-in on the precise fault area of a board, without removing components or applying power.

Locating shorts in multilayer PCBs could not be easier - you simply follow the arrows! After attaching stimulus leads to the shorted plane at or near the corners of the PCB, and a reference probe to the shorted network, you merely touch the tracing probe on any node of the failing network. The four-quadrant LED display on the Toneohm 950 immediately indicates the direction in which you should probe to find the fault.

Three or four probing operations are generally sufficient to bring you within 2 or 3mm of the short, at which point all four LEDs illuminate to confirm success. The fault-tracing process is accompanied by an audio tone which rises in frequency as the short is approached, together with a digital display of relative distance which enables extremely accurate shorts location.
