Speedstack stackup templates (suitable for Speedstack 2019 or higher)

The industry standard Speedstack PCB stackup design & documentation tool suite offers a powerful solution for PCB fabricators and designers for planning and creating live stacks (buildups) – complete with controlled impedance and insertion loss information and professional high quality documentation.

Polar downloadable stackup templates

The stackup templates listed below are typical of standard stacks used in PCB construction and may prove a useful starting point when building your own stacks.

Click on the link to the stackup template page and download the Speedstack project (.sci) file; save to a convenient location and the use the Open Project command in Speedstack to view and edit the stackup



Stackups

Stackups are shown with dimensions in microns



 Rigid stackups
Top
Stackup Description Template

6 layer rigid stackup with mechanical drill between layers 1 and 6. This is a typical foil build with foils on the outers (more cost effective than core builds – except in RF applications)

6 layer rigid template

8 layer rigid stackup with mechanical drill between layers 1 and 8 and laser drills between layers 1 and 2 and layers 8 and 7

8 layer rigid template

6 layer core build rigid stackup – layers 1 and 6 single sided cores

6 layer core build rigid template

4 layer RF core build rigid stackup – Material Library mode. Core builds are often used for RF applications allowing the use of high performance materials on outers with lower cost materials internally.

4 layer RF core build rigid template

4 layer RF core build rigid stackup – Virtual Library mode. Virtual library mode allows designers to give fabricators a general specification – whilst allowing the fabricator freedom in final material selection.

4 layer RF core build rigid template

 Flex_rigid_stackups
Top
Stackup Description Template

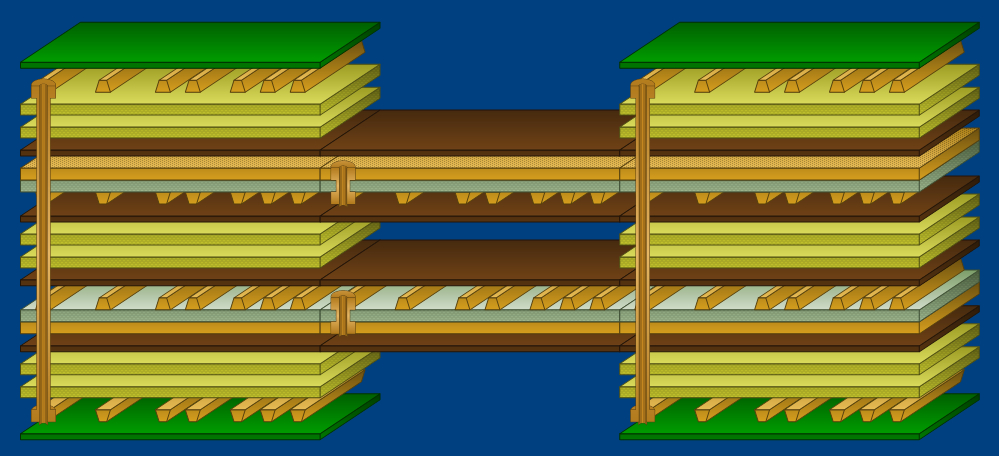

4 layer flex rigid – this shows a board with three cross sections, however Speedstack Flex permits unlimited cross sections for the most demanding rigid flex designs.

4 layer flex rigid template

6 layer flex rigid with drills

6 layer flex rigid template

8 layer 2-doublet flex rigid with drills

8 layer 2-doublet flex rigid template

10 layer quad flex rigid with drills

10 layer quad flex rigid template

10 layer diagonally symmetrical flex rigid

10 layer diagonally symmetrical flex rigid template

8 layer flex rigid stack with stiffener

8 layer flex rigid stack with stiffener

 HDI stackups
Top
Stackup Description Template

10 layer 3 press cycle HDI

10 layer HDI template

10 layer 4 press cycle HDI with drills – documenting in this way lets you clearly see the press cycles involved in producing the PCB.

10 layer HDI template

These stackups are indicative and may be modified to suit your application – Polar encourages designers & fabricators to plan together.
